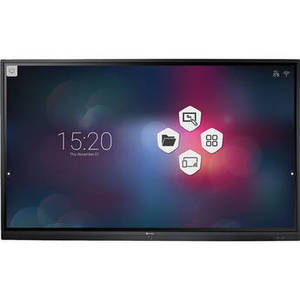

Meetboard 2 IFP-7502 75" 4K UHD Interactive Display
Product Description
Make your meetings and presentations more engaging and interactive with the Meetboard 2 IFP-7502 75" 4K UHD Interactive Display from AG Neovo. Featuring a 4K UHD resolution, this display reproduces your content with precise color and detail. The interactive flat panel features a 1100:1 contrast ratio and dual built-in 16W speakers, and its 20-point touch screen enables multiple participants to write at the same time using the included styluses or their fingers. For flexible connectivity, the unit features HDMI, VGA, and USB ports and supports wireless connectivity via 802.11ac Wi-Fi and Bluetooth.
| Display | |
| Screen Size (Diagonal) | 74.5" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | Maximum: 3840 x 2160 |
| Panel Type | TFT LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 350 cd/m� |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | |
| Response Time | 5 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Direct LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Input Ports | 3 x HDMI 2.0 Audio, Video 1 x VGA 15-Pin Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x HDMI 2.0 – Audio, Video 1 x 1/8" / 3.5 mm – Audio 1 x TOSLINK Optical – Audio |
| USB Ports | 3 x USB 2.0, USB-A 3 x USB 3.0 / 3.1/3.2 Gen 1, USB-A 2 x USB 2.0, USB-B |
| Ethernet Ports | 2 |
| Control | IP via DE-9/DB-9 Input IP via RJ45 |
| Wi-Fi | Wi-Fi Ready (Wi-Fi 5 (802.11ac)) |
| Bluetooth | Yes |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 20 |
| Surface Treatment | Anti-Glare |
| Hardness Rating | 8H |
| Haze Level | 25% |
| Audio | |
| Built-In Speakers | Yes, 2 x 16 W |
| Processing | |
| Hardware | |
| Operating System | Android 8 |
| CPU | Cortex A73 Dual-Core Cortex A53 Dual-Core |
| Storage | 16 GB |
| RAM | 3 GB |
| OS Compatibility | Windows 7 to 11 Windows Vista Windows 2000 macOS Android 3.5 or Later Linux 3.5 or Later Chrome OS 39 or Later *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Camera | |
| Sensor | |
| Field of View | 178° |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 165.0 W Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 90% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | BSMI, CE, FCC, REACH, RoHS, WEEE *as per Manufacturer |
| Physical | |
| Wall Mounting | 800 x 400 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | 0.16" / 4 mm |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 67.3 x 40.2 x 3.4" / 1710.0 x 1020.0 x 86.0 mm (without Stand) |
| Weight | 111.55 lb / 50.6 kg (without Stand) |
