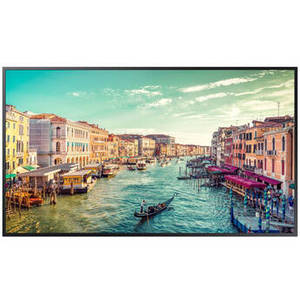

QMR-A 43" Class 4K UHD Smart Digital Signage LED Display
Product Description
With a built-in media player and the SMART Signage Platform, the Samsung QMR-A 43" Class 4K UHD Smart Digital Signage LED Display is designed to support a variety of content types to suit your needs. It has DisplayPort 1.2 and two HDMI 2.0 inputs to display your digital HD content, plus two USB ports for local multimedia playback. The QMR-A also has two built-in 10W speakers and can be installed in portrait or landscape orientation for versatile installation options.
| Display | |
| Screen Size (Diagonal) | 42.5" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | 92% DCI-P3 92% CIE1976 |
| HDR Compatibility | HDR10 |
| Brightness | 500 cd/m� (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 37.055 x 20.843" / 941.184 x 529.416 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Dynamic Contrast Ratio | |
| Response Time | 8 ms (GtG) |
| Refresh Rate | |
| Horizontal Frequency | 30 to 81 kHz |
| Vertical Frequency | 48 to 75 Hz |
| Dot Pitch | 0.2451 x 0.2451 mm |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | 594 MHz |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI 2.0 Audio, Video 1 x DisplayPort 1.2 Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB 2.0, USB-A |
| Ethernet Ports | 1 |
| Control | RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output |
| Wi-Fi | Built-in |
| Bluetooth | Yes |
| General | |
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Haze Level | 44% |
| Audio | |
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| Processing | |
| Hardware | |
| Operating System | Tizen 4.0 |
| CPU | 1.7 GHz Cortex A72 Quad-Core |
| Storage | 8 GB |
| RAM | 2.5 GB LPDDR4 1500 MHz |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | H.263, H.264/AVC, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Maximum: 110.0 W Typical: 74.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | Internal |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 80% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | ENERGY STAR, EPEAT, as per Manufacturer |
| Physical | |
| Wall Mounting | 200 x 200 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | IP5X |
| IK Rating | |
| IR Sensor | Yes |
| Glass Thickness | |
| Bezel Thickness | 9.2 mm (Right/Top/Left) 11.2 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 38.1 x 22.0 x 1.9" / 967.5 x 557.7 x 48.3 mm |
| Weight | 22.0 lb / 10 kg |
