XNV-9082R 4K UHD Outdoor Network Dome Camera with 3x Zoom & Night Vision
Product Description

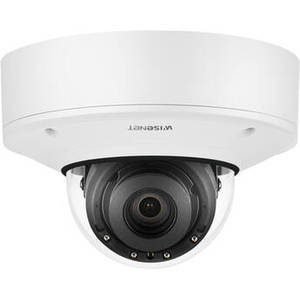

Monitor an indoor or outdoor area with a white XNV-9082R 4K UHD Network Dome Camera from Hanwha Techwin. This unit uses a 1/2.8" CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 131' of night vision. The camera's 2.8-8.4mm motorized varifocal lens delivers a 114 to 40.2° horizontal field of view and 3x optical zoom. Two-way audio is possible thanks to an audio input and output. Dual card slots support microSD/SDHC/SDXC cards for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP69-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP69-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 8.4mm |
| Maximum Aperture | f/1.2 to 2.8 |
| Zoom | Optical: 3x |
| Lens Field of View | Horizontal: 114 to 40.2° Vertical: 62 to 22.5° Diagonal: 133 to 46.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.05 Lux B&W: 0 Lux |
| Shutter Speed | 1/12000 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: -45 to 85° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 10 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC-LC, G.711, G.726 |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SRTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, SUNAPI (HTTP, API), Wisenet Open Platform |
| Analytics | Defocus Detection, Directional Detection, Motion Detection (8 Polygonal Zones), Digital Auto Tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual Line, Audio Detection, Sound Classification, Shock Detection, Face/Upper Body Detection, People Counting, Queue Management, Heat Mapping |
| Built-In Installation Aids | |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
| Hardware | |
| Memory | 4 GB RAM / 512 MB Flash |
| Media/Memory Card Slot | Dual Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3af (15 W) |
| Power Consumption | PoE: 10.7 W DC: 9 W AC: 11 W |
| Environmental | |
| Operating Temperature | -58 to 140°F / -50 to 60°C |
| Startup Temperature | |
| Storage Temperature | -58 to 140°F / -50 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP69K |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Micro-USB |
| Illumination | IR LEDs up to 131.2' / 40 m |
| Video Management Software | |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 7.1 x H: 4.9" / �: 180.0 x H: 125.0 mm |
| Weight | 4.2 lb / 1.9 kg |
