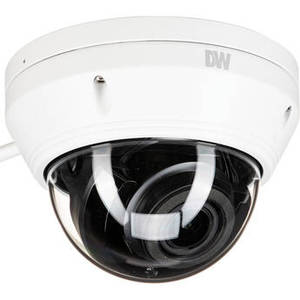

MEGApix DWC-MV94WIAT 4MP Outdoor Network Dome Camera with 4.3x Zoom & Night Vision
Product Description
Monitor an indoor or outdoor area with the MEGApix DWC-MV94WIAT from Digital Watchdog. This unit uses a 1/3" CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. Smart IR provides up to 164' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 94.2 to 29.8° field of view. Two-way audio is possible thanks to a built-in microphone, an audio input, and an audio output. A built-in memory card slot supports microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, enabling interoperability with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
This dome camera complies with ONVIF profiles G, S, and T, enabling interoperability with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.4 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 94.2 to 29.8° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.0038 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/30 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2592 x 1520 at 30 fps (8 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering |
| Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Line Crossing, Perimeter Intrusion, Video Tampering Detection (Scene Change, Video Blur, Abnormal Color Detection), Object Classification (Differentiates Humans from Objects) |
| Built-In Installation Aids | |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 8 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 10 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 164' / 50 m |
| Video Management Software | DW Spectrum IPVMS |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type), Polymer |
| Dimensions | �: 5.4 x H: 3.9" / �: 138.0 x H: 100.0 mm |
| Weight | 1.96 lb / 0.89 kg |
