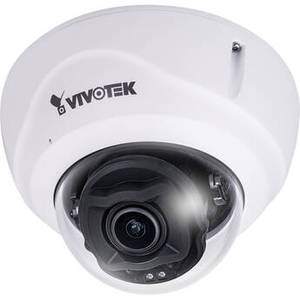

FD9387-HTV-A 5MP Outdoor Network Dome Camera with 5x Zoom & Night Vision
Product Description
Monitor an indoor or outdoor area with the FD9387-HTV-A 5MP Network Dome Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 30 fps. Four IR LEDs provide up 164' of night vision. The camera's 2.7-13.5mm varifocal lens delivers a 100 to 30° horizontal field of view. Two-way audio communication is possible thanks to a built-in microphone, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
This dome camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | |
| Focal Length | 2.7 to 13.5mm |
| Maximum Aperture | f/1.4 to 2.8 |
| Zoom | Optical: 5x Digital: 48x |
| Lens Field of View | Horizontal: 100 to 30° Vertical: 72 to 23° Diagonal: 135 to 38° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.075 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 350° Vertical: 0 to 80° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 30 fps 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTCIP, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G & S |
| Analytics | Five-Window Video Motion Detection People Detection Time Filter |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 Windows 10 macOS 10.12 *As of July, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 1 GB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3af (15 W) |
| Power Consumption | PoE: 12 W DC: 9 W AC: 10.5 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | |
| Operating Humidity | 98% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC |
| Illumination | 4 x IR LEDs up to 164' / 50 m |
| Video Management Software | VAST, Shepherd, VADP Package |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 6.1 x H: 4.1" / �: 155.0 x H: 103.2 mm |
| Weight | 2 lb / 909 g |
