Product Description

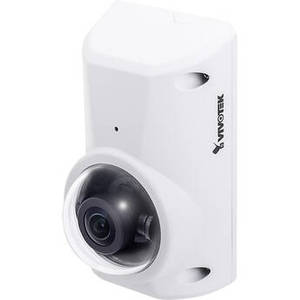

Monitor an indoor or outdoor area with the CC9380-HV 5MP Network Fisheye Camera from Vivotek. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at up to 30 fps. The camera's 1.45mm fixed fisheye lens delivers a 180° horizontal panoramic field of view. A built-in microphone enables the camera to pick up audio. A memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
This fisheye camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | |
| Focal Length | 1.4mm |
| Maximum Aperture | f/2.2 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 180° Vertical: 120° Diagonal: 180° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.11 Lux B&W: 0.01 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 Windows 10 macOS 10.12 *As of July, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 512 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 5 W |
| Environmental | |
| Operating Temperature | -22 to 122°F / -30 to 50°C |
| Startup Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | |
| Operating Humidity | 90% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | |
| Video Management Software | VAST, Shepherd, VADP Package |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 4.5 x W: 2.6 x L: 2.3" / H: 115.0 x W: 65.0 x L: 59.0 mm |
| Weight | 0.7 lb / 338 g |
