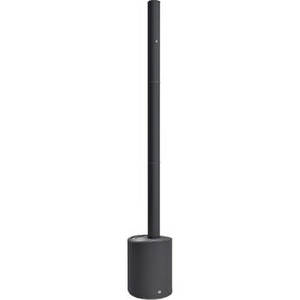

MAUI 5 GO 100 Ultraportable Battery-Powered Column PA System (3200mAh, Black)

Product Description
Looking for a portable PA system that's ideal for ideal for street musicians or for speech and music reinforcement at private and corporate events? Check out the black LD Systems MAUI 5 GO 100, an ultraportable, battery-operated column PA system that comprises a subwoofer cabinet and a three-section column. With a four-driver line-array design and an 8" subwoofer, the MAUI 5 GO 100 delivers 800W of peak power with extended coverage and wide dispersion. Powered by a high-capacity lithium-ion battery, it provides up to 12 hours of continuous performance on a full charge.
The four-channel mixer features a pair of line inputs, a microphone input, a Hi-Z instrument input, a 3.5mm aux input, and a Bluetooth receiver for stereo audio streaming. The built-in proprietary LECC DSP processing digital signal, which offers multiband-limiter, equalizer, compressor, and crossover functions, ensures optimum audio playback with maximum clarity, while protecting the MAUI 5 GO 100 from overload.
Lightweight (at 27 lb) and easy to transport, it assembles in seconds using custom, multipin connectors. The battery section uses the company's proprietary Quick-Swap technology for fast and easy replacement (even while the system is in operation), allowing you to perform without a time limit.
| Portable PA System | |
| Speaker Configuration | 2-Way Speaker Column with Subwoofer |
| Number of Input Channels | 4 (2 x Mono, 2 x Stereo) |
| Amplifier Power Rating | 200 W RMS 800 W Peak |
| Amplifier Class | Class-D |
| Impedance | |
| Speakers | |
| Enclosure Type | Bass-Reflex |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 4 x 3" / 76.2 mm |
| HF Voice Coil | 1" / 25.4 mm |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | |
| LF Voice Coil | |
| Subwoofer Driver | 1 x 8" / 203.2 mm |
| Subwoofer Voice Coil | 2" / 50.8 mm |
| Magnet | Subwoofer: Ferrite HF Driver/MF Driver: Neodymium |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | Yes |
| Semi-Parametric EQ | None |
| Effects | |
| DSP | 24-Bit DSP at 48 kHz |
| Filters | |
| Dynamic Processing | Multiband Limiter |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | 50 Hz to 20 kHz |
| Frequency Range | |
| Maximum SPL | 120 dB (Peak) |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | 120° H x 20° V |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | |
| SNR | |
| THD | |
| Dynamic Range | |
| Protections | Deep Discharge, Overcharging, Overcurrent, Short Circuit, Thermal |
| Connectivity | |
| Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Line Input 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic Input 1 x 1/4" TS Unbalanced Hi-Z Input 1 x 1/8" / 3.5 mm TRS Aux Input 1 x XLR 3-Pin Male Balanced Line Output |
| Phantom Power | |
| USB | |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | Bluetooth |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Bluetooth | Yes |
| Bluetooth Profiles | |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | |
| Power | |
| Battery Type | 1 x Rechargeable 29.6 V Lithium-Ion |
| Approximate Battery Life | 12 Hours (Low Power) 6 Hours (High Power) 4 Hours (Max Power) |
| Battery Charging Time | 2 Hours |
| Internal Battery Capacity | 3200 mAh |
| Battery Cycle Count | |
| AC Input Power | Universal: 100 to 120 VAC, 50 / 60 Hz 200 to 240 VAC, 50 / 60 Hz |
| Power Supply Output | |
| Current Consumption | |
| Power Consumption | 300 W (Max) |
| DC Input Power | |
| AC Power Connector | IEC |
| Physical | |
| Cable Length | |
| Transport Options | 1 x Handle (Top) |
| Mounting | |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | Convection |
| Construction Material | ABS |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | Subwoofer: 12 x 15.9 x 15.6" / 30.5 x 40.4 x 39.6 cm Top Speaker: 3.2 x 21.1 x 4.1" / 8.1 x 53.6 x 10.4 cm (Each) System: 78.1" / 198.5 cm |
| Weight | System: 27.3 lb / 12.4 kg |
