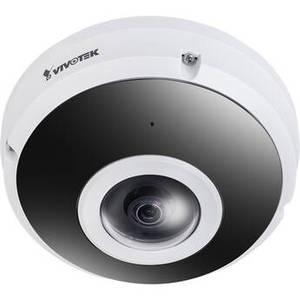

FE9380-HV 5MP Outdoor Network Fisheye Dome Camera with Night Vision

Product Description
Monitor an outdoor area with the FE9380-HV 5MP Network Fisheye Dome Camera from Vivotek. This unit uses a 5MP 1/2.7" progressive scan CMOS sensor to capture 1920 x 1920 resolution video at 30 fps. Four IR LEDs provide up to 33' of night vision. The camera's 1.16mm fixed lens delivers a 180° horizontal field of view and a 360° fisheye view. A built-in microphone enables the camera to pick up audio. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 64GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure for outdoor use in areas at risk of vandalism.
Camera | |
Sensor | 5 MP 1/2.7" CMOS |
Lens Mount | |
Focal Length | 1.2mm |
Maximum Aperture | f/2.25 |
Zoom | Digital: 12x |
Lens Field of View | Horizontal: 180° Vertical: 180° Diagonal: 180° |
IR Cut Filter | Mechanical |
Day/Night | Yes |
Minimum Illumination | Color: 0.05 Lux B&W: 0 Lux |
Shutter Speed | 1/32000 to 1/5 Seconds |
Camera Angle Adjustment | |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 1920 x 1920 at 30 fps |
Supported Video Compression | H.264, H.265, MJPEG |
Multi-View Streaming | Yes, 4 Streams |
Automatic Gain Control | |
Video Output Connectors | |
Output Formats | |
Audio | |
1- or 2-Way Audio | One-Way |
Audio Formats | G.711, G.726 |
Built-In Mic | Yes |
Built-In Speaker | |
Audio I/O | |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | |
Pan/Tilt | None |
Move Speed | |
Movement Range | |
Networking | |
Security | HTTPS, IEEE 802.1X |
Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNTP, SSL/TLS, TCP, UDP, UPnP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ONVIF Profiles G, S & T |
Analytics | Five-Window Video Motion Detection |
Built-In Installation Aids | |
OS Compatibility | Windows 7 Windows 8 Windows 10 macOS 10.12 *As of December, 2020: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | Yes |
Alarm I/O | |
Hardware | |
Memory | 512 MB RAM / 128 MB Flash |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [64 GB Maximum] |
Internal Storage | None |
External Storage Options | NAS |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | PoE 802.3af (15 W) |
Power Consumption | 12 W |
Environmental | |
Operating Temperature | -22 to 140°F / -30 to 60°C |
Startup Temperature | 14 to 140°F / -10 to 60°C |
Storage Temperature | |
Operating Humidity | 90% |
IP Rating | |
IK Rating | |
General | |
Inputs/Outputs | 1 x RJ45 |
Illumination | 4 x IR LEDs up to 32.8' / 10 m |
Video Management Software | VAST, Shepherd |
Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
Certifications | |
Material of Construction | |
Dimensions | �: 5.9 x H: 2.7" / �: 150.0 x H: 68.2 mm |
Weight | 1.5 lb / 695 g |
