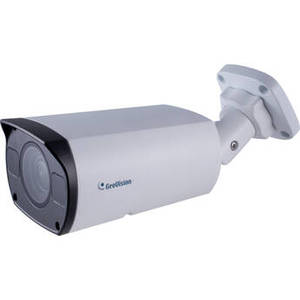

GV-TBL4700 4MP Outdoor Network Bullet Camera with Night Vision
Product Description
Monitor an indoor or outdoor area with the GV-TBL4700 4MP Network Bullet Camera from GEOVISION. This unit uses a 1/3" progressive scan low-lux CMOS sensor to capture 2592 x 1520 resolution video at up to 20 fps. Two IR LEDs provide up to 100' of night vision. The camera's 2.8-12mm varifocal lens delivers a 96 to 32° horizontal field of view. A memory card slot supports microSD cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
This bullet camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M14 |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.6 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 96 to 32° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/25 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2592 x 1520 at 20 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Tampering Alarm, Intrusion, Human Body Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of May, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 7 W |
| Environmental | |
| Operating Temperature | -31 to 140°F / -35 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | GV-�DVR/NVR (V8.8), GV-�VMS (V17.3.0/V18.1.1), GV�-Control Center (V3.7.0), GV-Edge Recording Manager Windows (V1.4.0), GV-Recording Server/Video Gateway (V1.4.2), GV-Redundant/Failover Server (V1.1.0.0), GV-Eye for iOS and Android |
| Supported Languages | Czech English French German Italian Russian Traditional Chinese |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | H: 2.9 x W: 3.8 x L: 9.6" / H: 74.0 x W: 96.0 x L: 244.0 mm |
| Weight | 2.2 lb / 1 kg |
