Product Description

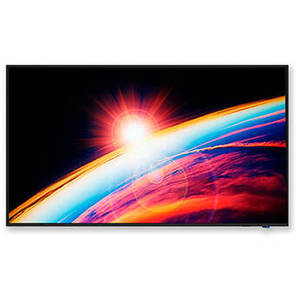

Get your clients' attention by display your content in 4K UHD resolution with the NEC E658 65" Class 4K UHD Commercial LED TV. It features a 64.5" LED backlit LCD panel with a 3840 x 2160 native resolution for viewing detailed 4K UHD images. It outputs up to 350 cd/m² of peak brightness with an 8000:1 typical contrast ratio to showcase boht light and dark on-screen images.
This display is equipped with VGA and three HDMI inputs for connecting a variety of video sources, as well as a USB port for multimedia playback. Dual built-in speakers allow audio to accompany your video messaging.
This display is equipped with VGA and three HDMI inputs for connecting a variety of video sources, as well as a USB port for multimedia playback. Dual built-in speakers allow audio to accompany your video messaging.
| Display | |
| Screen Size (Diagonal) | 64.5" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 320 cd/m� (Typical) 350 cd/m� (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 8000:1 |
| Dynamic Contrast Ratio | |
| Response Time | |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Direct LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI 2.0 Audio, Video 1 x RF Antenna Audio, Video 1 x VGA 15-Pin Video 1 x 1/8" / 3.5 mm Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x TOSLINK Optical – Audio 1 x 1/8" / 3.5 mm – Headphone |
| USB Ports | 1 x Unspecified USB, USB-A - Audio/Photo/Video 1 x Unspecified USB, USB-C - Power |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 |
| General | |
| TV Tuner | Yes - ATSC, Clear QAM |
| Display Orientation | Landscape |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Audio | |
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| Processing | |
| Processor | |
| CPU | |
| OS Compatibility | |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Analog Video Formats | NTSC |
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MP4, MPEG, MPEG2, MPEG4, MPG, TS, WMV, WMV3 |
| Supported Audio File Types | MP3 |
| Supported Photo File Types | JPE, JPEG, JPG |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | -10 to 10° |
| Electrical | |
| Power Consumption | Maximum: 220.0 W Typical: 144.0 W Standby: 0.5 W Network Standby: 2.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 to 2.5 A |
| DC Input Power | |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 20 to 80% |
| Storage Humidity | |
| Operating Altitude | 0.0 to 9842' / 0 to 3000 m |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | ENERGY STAR *as per Manufacturer |
| Physical | |
| Wall Mounting | 400 x 600 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | Yes |
| Glass Thickness | |
| Bezel Thickness | 13 mm (Right/Top/Left) 14.4 mm (Bottom) |
| Duty Cycle | |
| Dimensions | 57.4 x 34.8 x 2.9" / 1457.5 x 883.9 x 73.0 mm |
| Stand Dimensions | |
| Weight | 51.3 lb / 23.3 kg |
