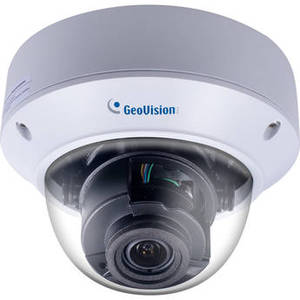

GV-TVD8710 8MP Outdoor Network Dome Camera with 4.3x Zoom & Night Vision
Product Description
Monitor an indoor or outdoor area with the GV-TVD8710 8MP Network Dome Camera from GEOVISION. This unit uses a super-low-lux 1/2" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at up to 20 fps. Two IR LEDs provide up to 100' of night vision illumination. The camera's 2.8-12mm motorized varifocal lens provides 4.3x optical zoom and a 114.8 to 47.3° horizontal field of view. Two-way audio is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated metal enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/2" CMOS |
| Lens Mount | M14 |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | f/1.5 |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 114.8 to 47.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.003 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/6 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 80° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 20 fps 2944 x 1656 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Tampering Alarm, Audio Detection, Line Crossing, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of June, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 8 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Block 4-Pin |
| Illumination | IR LEDs up to 100' / 30.48 m |
| Video Management Software | GV-DVR/NVR (V8.8.0), GV-VMS (V17.1.0.100), GV-Control Center (V3.5.1), GV-Edge Recording Manager Windows (V1.4.0), GV-Recording Server/Video Gateway (V1.4.2), GV-Redundant/Failover Server (V1.1.0.0), GV-Eye for iOS and Android |
| Supported Languages | Czech English French German Hungarian Italian Japanese Polish Portuguese Russian Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 5.8 x H: 4.4" / �: 148.0 x H: 111.3 mm |
| Weight | 1.65 lb / 0.75 kg |
