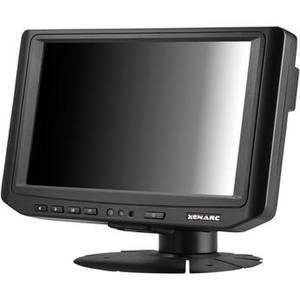

702YH 7" Class 1024 x 600 Class Multi-Purpose LED Monitor
Product Description
Add a display to nearly any project with the Xenarc 702YH 7" Class 1024 x 600 Class Multi-Purpose LED Monitor. With its automotive use certification, it can be installed in vehicles for in-car computing, mobile production, and more. It features HDMI, VGA, and composite video connectivity via the included breakout cable. An IR remote control is also included as an added convenience.
| Display | |
| Screen Size (Diagonal) | 7" |
| Resolution | 1024 x 600 |
| Supported Display Resolutions | Maximum: 1920 x 1080 Minimum: 640 x 480 |
| Panel Type | LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 1000 cd/m� |
| Viewing Angle (H x V) | 150 x 145° |
| Screen Area | |
| Aspect Ratio | 15.4:9 |
| Contrast Ratio | 700:1 |
| Dynamic Contrast Ratio | |
| Response Time | 25 ms (GtG) |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x D-Sub 26-Pin – Audio, Video (Rear) 1 x HDMI – Audio, Video (Included Breakout Cable) 1 x VGA 15-Pin – Video (Included Breakout Cable) 1 x RCA Composite – Video (Included Breakout Cable) 1 x RCA Stereo (L/R) – Audio (Included Breakout Cable) |
| USB Ports | 1 x Unspecified USB (Included Breakout Cable) |
| Ethernet Ports | None |
| General | |
| Display Orientation | |
| HDCP Support | Yes |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | Yes |
| Lighting Lifespan | |
| Audio | |
| Built-In Speakers | Yes |
| Processing | |
| Processor | |
| CPU | |
| OS Compatibility | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: < 10.0 W |
| DC Input Power | 10 to 35 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Storage Temperature | -22 to 176°F / -30 to 80°C |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | CE, FCC, RoHS *as per Manufacturer |
| Physical | |
| Wall Mounting | 50 x 50 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | Yes |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 7.7 x 4.8 x 1.4" / 196.0 x 121.5 x 35.0 mm |
| Weight | 1.54 lb / 699 g |
