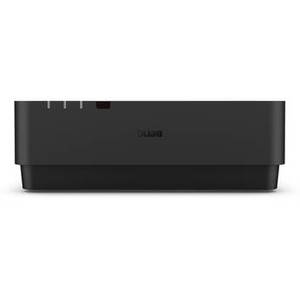

LU960UST 5200-Lumen WUXGA Ultra-Short Throw Laser DLP Installation Projector
Product Description
Create large images from short distances in museums and exhibitions with the BenQ LU960UST 5200-Lumen WUXGA Ultra-Short Throw Laser DLP Installation Projector. It outputs up to 5200 lumens of brightness to provide vibrant images, even in settings with ambient light. The ultra-short 0.25:1 throw ratio lets you place the projector within 3' of your screen or wall to achieve images up to 150" while helping to avoid on-screen shadows.
HDBaseT, VGA, DisplayPort, and two HDMI inputs are onboard to connect both standard definition and HD sources. The HDMI and VGA outputs let you daisy-chain your video source to another projector or display to simplify larger installations. You can control the projector via the included remote control or over Ethernet or RS-232. A remote control is included as an added convenience.
HDBaseT, VGA, DisplayPort, and two HDMI inputs are onboard to connect both standard definition and HD sources. The HDMI and VGA outputs let you daisy-chain your video source to another projector or display to simplify larger installations. You can control the projector via the included remote control or over Ethernet or RS-232. A remote control is included as an added convenience.
| Image Display | |
| Display System | 0.48" DC3 DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 |
| Maximum Brightness | 5200 Lumens (ANSI) |
| Offset | 122% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Sequential (up to 720p) Frame Packing (up to 1080p) Side by Side (up to 1080p) Top Bottom (up to 1080p) |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 135 kHz Vertical: 23 to 120 Hz |
| Lens | |
| Focus | Manual |
| Optical Zoom | None |
| Throw Distance | 0.87 - 32.9" / 2.22 - 83.6 cm |
| Throw Ratio | 0.25:1 |
| Projection Size | 100 - 150" / 254.0 - 381.0 cm |
| Features | |
| Keystone Correction | Vertical: ± 30° Horizontal: ± 30° |
| Supported HDR Input Formats | None |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
| Projection Tilt Option | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x RJ45 (HDBaseT) Audio, Control, Data, Video 2 x HDMI (HDMI 2.0) Audio, Video Input 1 x HDMI (HDMI) Audio, Video Output 1 x DisplayPort Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Input 1 x DE-15/DB-15 (VGA) Video Output 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x 12 V Trigger Control 1 x 1/8" / 3.5 mm Mini Remote Input 1 x USB-A (USB 2.0) Power Output 1 x Mini-USB (USB 2.0) Service Input 1 x RJ45 (Ethernet) LAN 1 x DE-9/DB-9 (RS-232) Control 1 x 3-Pin DIN (VESA 3D Sync) Control Input 1 x 3-Pin DIN (VESA 3D Sync) Control Output |
| Processor | |
| CPU | |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Medium Brightness: 38,000 Hours Low Brightness: 70,000 Hours |
| Fan Noise | Full Brightness: 37 dB Low Brightness: 35 dB |
| Security | Cable Lock Slot Security Bar |
| Supported Languages | Arabic Bulgarian Croatian Czech Danish Dutch English Finnish French German Greek Hindi Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 7 A |
| DC Input Power | |
| Power Consumption | Full Brightness: 500 W Medium Brightness: 450 W Low Brightness: 339 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Altitude | 0.0 to 9842' / 0 to 3000 m |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 10 to 90% |
| Dimensions (W x H x D) | 18.9 x 6.4 x 18.6" / 480.0 x 163.1 x 473.0 mm |
| Weight | 26.4 lb / 12 kg |
