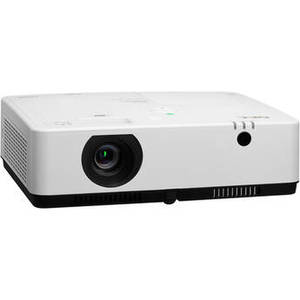

NP-MC423W 4200-Lumen WXGA Education LCD Projector
Product Description
Enjoy bright, clear images in your classroom with the NEC NP-MC423W 4200-Lumen WXGA Education LCD Projector. Its 4200 lumens of brightness can overcome ambient light in most classroom settings, while its 16,000:1 dynamic contrast ratio can help ensure discernible detail in most images. The projector's native WXGA 1280 x 800 resolution is suitable for most video and file formats, and will accept up to 1920 x 1200 resolution source inputs.
The NP-MC423W has VGA, composite video, and two HDMI inputs to support most input types, plus an analog audio input and built-in 16W speaker that will provide audio for your video. The 1.4 to 1.6:1:1 throw ratio and 1.2x zoom allow you to place the projector near the back of the room in most cases. It is controllable via Ethernet, RS-232, the included IR remote control, or various control software options.
The NP-MC423W has VGA, composite video, and two HDMI inputs to support most input types, plus an analog audio input and built-in 16W speaker that will provide audio for your video. The 1.4 to 1.6:1:1 throw ratio and 1.2x zoom allow you to place the projector near the back of the room in most cases. It is controllable via Ethernet, RS-232, the included IR remote control, or various control software options.
| Image Display | |
| Display System | 0.64" LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 4200 Lumens |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 16,000:1 |
| Scan | Horizontal: 15 to 100 kHz Vertical: 50 to 120 Hz |
| Lens | |
| Focus | Manual |
| Lens | f/1.6 - 1.76 (f = 19.158 - 23.018 mm) |
| Optical Zoom | Manual: 1.2x |
| Throw Distance | 2.9 - 35.9' / 0.9 - 10.9 m |
| Throw Ratio | 1.4 to 1.6:1 |
| Projection Size | 30 - 300" / 76.2 - 762.0 cm |
| Features | |
| Keystone Correction | Manual-Horizontal: ± 30° Auto / Manual-Vertical: ± 30° |
| Supported HDR Input Formats | None |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 16W |
| Remote | Yes |
| Input/Output Connectors | |
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x Digital Coaxial (1/8" / 3.5 mm Mini) Audio Output 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Data, LAN 1 x USB 2.0 (USB Type-B) Service Input 1 x RS-232 (DE-9/DB-9) Control Input |
| HDCP Support | Version 2.0 |
| Hardware | |
| Processor | |
| CPU | |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
| General | |
| Light Source | Lamp |
| Lamp Power | 240 W |
| Expected Lamp Life | Full Brightness: 8000 Hours Medium Brightness: 10,000 Hours Low Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 37 dB Low Brightness: 29 dB |
| Supported Photo File Types | JPG |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Consumption | Standby Mode (Lamp Off): 0.5 W |
| Operating Altitude | |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | 14 to 122°F / -10 to 50°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | |
| Dimensions (W x H x D) | 13.6 x 4.3 x 10.3" / 345.0 x 108.4 x 261.0 mm |
| Weight | 7.1 lb / 3.2 kg |
