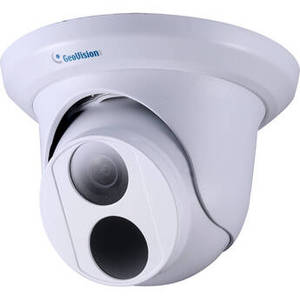

GV-EBD4701 4MP Outdoor Network Turret Camera with Night Vision
Product Description
Monitor an outdoor area with the GV-EBD4701 4MP Network Turret Camera from GEOVISION. This unit uses a super low-lux 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 30 fps. An IR LED provides up to 100' of night vision. The camera's 2.8mm fixed lens delivers a 107° horizontal field of view. A built-in microphone picks up audio. An onboard memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for safe outdoor use.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for safe outdoor use.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Zoom | |
| Lens Field of View | Horizontal: 107° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/6 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 90° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2688 x 1520 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS |
| Supported Protocols | ARP, DDNS, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Motion Detection, Tampering Alarm, Audio Detection, Intrusion, Human Body Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of April, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC (UHS-I) [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 5.5 W |
| Environmental | |
| Operating Temperature | -31 to 140°F / -35 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 100' / 30.48 m |
| Video Management Software | GV-VMS (V17.4.0/V18.1.1), GV-DVR/NVR (V8.9.0), GV-Control Center (V3.8.0), GV-Recording Server/Video Gateway (V1.4.0), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Redundant/Failover Server (V1.1.0.0), GV-Mobile Server (V1.5.0.0) for iOS and Android |
| Supported Languages | Czech English French German Hungarian Italian Japanese Polish Portuguese Russian Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 5.0 x H: 3.7" / �: 126.0 x H: 94.0 mm |
| Weight | 0.99 lb / 0.45 kg |
