DS-2DF8C842IXS-AELW 8MP Outdoor PTZ Network Dome Camera with Night Vision, Heater & Wiper
Product Description

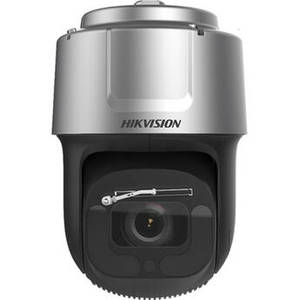

Monitor an outdoor area with the DS-2DF8C842IXS-AELW 8MP PTZ Network Dome Camera from Hikvision. This unit uses a 1/1.2" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 25 fps. IR LEDs provide up to 1640' of night vision. A 7.5-315mm varifocal lens delivers a 60.4 to 1.7° horizontal field of view. The camera features endless panning, a -20 to 90° tilt range, and 42x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Compliance with ONVIF profiles G and S enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. It is equipped with a heater and wiper.
| Camera | |
| Sensor | 8 MP 1/1.2" CMOS |
| Lens Mount | |
| Focal Length | 7.5 to 315mm |
| Maximum Aperture | f/1.6 |
| Zoom | Optical: 42x Digital: 16x |
| Lens Field of View | Horizontal: 60.4 to 1.7° Vertical: 36.2 to 0.9° Diagonal: 67.8 to 2.2° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.002 Lux B&W: 0 Lux |
| Shutter Speed | 1/30000 to 1 Seconds |
| Camera Angle Adjustment | |
| DORI Coverage | With 7.5 to 315mm Lens: Detect: at 20,670' / at 6300.2 m Observe: at 8202' / at 2500.0 m Recognize: at 4134' / at 1260.0 m Identify: at 2067' / at 630.0 m |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 25 fps (16.384 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | Pelco-D Pelco-P RS-485 HIKVISION-C |
| Pan/Tilt | Programmed Pan: 360° at 280°/s Programmed Tilt: 119° (-20 to 90°) at 250°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G & S, ISAPI, Hikvision SDK, Third-Party Management Platform, ISUP |
| Analytics | Face Capture, Face Comparison, Motion Detection, Video Tampering Alarm, Alarm I/O, Exception, Unattended Baggage Detection, Object Removal Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection, Vandal-Proof Alarm, Smart Tracking (Manual Tracking, Panorama Tracking, Event Tracking, Patrol Tracking Among Multiple Detection Scenes), Smart Record |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of April, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 7 / 2 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, PoE 802.3bt (60 W) |
| Power Consumption | AC: 60 W (With Heater) PoE+: 51 W (With Heater) |
| Environmental | |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC 1 x Serial 9-Pin (RS-485) |
| Illumination | IR LEDs up to 1640.4' / 500 m |
| Video Management Software | iVMS-4200, iVMS-4500, Hik-Connect |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Certifications | |
| Material of Construction | Aluminum |
| Dimensions | �: 10.5 x H: 16.9" / �: 267.0 x H: 430.0 mm |
| Weight | 21.2 lb / 9.6 kg |
