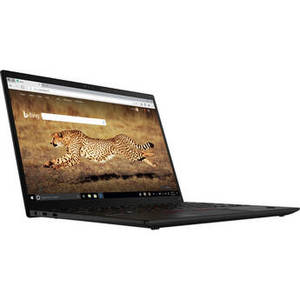

13" ThinkPad Carbon X1 Nano Gen 1 Laptop (Black)

Product Description
Capitalize on compact performance with the 13" ThinkPad Carbon X1 Nano Gen 1 Laptop in black from Lenovo. Shrinking the processing power of the X1 Carbon into a more compact form, this laptop features a 2.1 GHz 11th Gen Intel Core i7 quad-core processor and 16GB of RAM. Store critical assets locally with the 512GB M.2 SSD. An HD IR webcam, quad-mic array, and four speakers allow for easy videoconferencing on the go. Facial recognition, human presence detection, user drive and power-on passwords, a fingerprint reader, camera privacy shutter, and TPM keep your work secure. Thin and light, the Carbon X1 Nano weighs just 2 pounds and is tested to military standards for rugged durability. Up to 22.87 hours of battery life provides plenty of juice for work and play.
Connect wired accessories via two Thunderbolt 4 ports with power delivery. Use wireless peripherals or go online using Bluetooth 5.2 and Wi-Fi 6, respectively. Take advantage of wired Ethernet support with the optional Lenovo USB Type-C to Ethernet Adapter. Featuring a 13" 2160 x 1350 IPS display, the Lenovo ThinkPad Carbon X1 Nano can extend or mirror content to additional displays using the Thunderbolt 4 ports. A backlit keyboard allows for typing under dim lighting conditions. The Lenovo ThinkPad Carbon X1 Nano Gen 1 Laptop operates on the Windows 10 Pro 64-bit operating system.
Operating System | Windows 10 Pro (64-Bit) |
Performance | |
CPU Architecture | x86 |
Chipset | |
Processor | Intel Core i7-1160G7 (11th Gen) |
CPU Socket | |
CPU | 2.1 to 4.4 GHz Quad-Core |
L3 Cache | 12 MB |
Graphics Type | Integrated |
GPU | Intel Iris Xe |
Memory Type | 4266 MHz LPDDR4x |
Total Installed Memory | 16 GB |
Memory Configuration | 16 GB (Onboard) |
Maximum Memory Capacity | |
Memory Slot Type | |
Memory Slots | |
Buffered Memory | |
ECC Memory | |
Intel Optane Memory | |
Afterburner | |
Display | |
Panel Type | IPS-Type LCD |
Size | 13" |
Aspect Ratio | 16:10 |
Resolution | 2160 x 1350 |
Touchscreen | No |
Finish | Glossy with Antireflective Coating |
Maximum Brightness | 450 cd/m2 |
Color Gamut | 100% sRGB |
Refresh Rate | |
Contrast Ratio | 1000:1 |
Response Time | |
Variable Refresh Technology | |
Viewing Angle (H x V) | 170 x 170° |
Storage and Expansion | |
Total Drive Bays | |
2.5" Slots | |
SSD Slots | 1 x M.2 2242 PCIe (Unspecified Interface) x4 (In Use) |
Total Installed Capacity | 512 GB |
Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
Hard Disk Storage | |
Hybrid Storage | |
MPX Bays | |
PCI Expansion | |
PCI Expansion in MPX Bays | |
Expansion Slots | |
Optical Drive | None |
I/O | |
Ports | |
USB Type-C | 2 x Thunderbolt 4 (Supports DisplayPort and Power Delivery) |
Display | |
Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
Built-In Speakers | 2 x 2 W and Subwoofer 2 x 1 W |
Built-In Microphones | 4 x Far-Field |
Media/Memory Card Slot | None |
Communications | |
Ethernet | None |
Wi-Fi | Wi-Fi 6 (802.11ax) |
MU-MIMO Support | 2 x 2 |
Bluetooth | 5.2 |
5G NR | None |
GPS | None |
NFC | No |
Webcam | User-Facing: 720p |
Battery | |
Battery Chemistry | Lithium-Ion Polymer (LiPo) |
Capacity | Non-Removable: 48 Wh |
Estimated Battery Life | 22.87 Hours |
Keyboard & Mouse | |
Keyboard | Notebook Keyboard with Backlight |
Pointing Device | TouchPad |
General | |
Security | Dedicated Hardware TPM Security Chip, Facial Recognition, Fingerprint Reader, HDD User Password Protection, Power-On Password, Webcam Blocker |
Power Supply | 65 W with USB Type-C |
AC Input Power | |
Operating Temperature | |
Operating Humidity | |
Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, TUV, as per Manufacturer |
Mounting-Hole Pattern | |
Dimensions | 11.5 x 8.2 x 0.7" / 292.8 x 207.7 x 16.7 mm |
Weight | 2 lb / 907 g |
