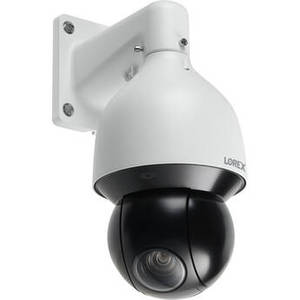

E881AP 4K UHD Outdoor PTZ Network Dome Camera with Night Vision
Product Description
Monitor an outdoor area and record video to your Pro Series N881 or N882 NVR with the E881AP 4K UHD PTZ Network Dome Camera from Lorex. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide a night vision range up to 98' in total darkness and 150' in ambient lighting. A 5.3-135mm varifocal lens delivers a 61.6 to 3.6° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 25x optical zoom. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use.
This PTZ camera is housed in an IP67-rated aluminum enclosure that is suitable for outdoor use.
| Camera | |
| Sensor | 8 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 5.3 to 135mm |
| Maximum Aperture | f/1.6 to 4 |
| Zoom | Optical: 25x |
| Lens Field of View | Horizontal: 61.6 to 3.6° Diagonal: 66.6 to 4° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | B&W: 0 Lux |
| Shutter Speed | |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 30 fps |
| Multi-View Streaming | |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Manual Pan: 360° at 300°/s Programmed Pan: 360° at 400°/s Manual Tilt: 105° (-15 to 90°) at 200°/s Programmed Tilt: 105° (-15 to 90°) at 300°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | |
| Supported Protocols | |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of March, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | No |
| Event Action | |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | None |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | 24 W |
| Environmental | |
| Operating Temperature | -40 to 158°F / -40 to 70°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 13.0 x W: 6.5" / H: 331.0 x W: 165.0 mm |
| Weight | 11.7 lb / 5.3 kg |
