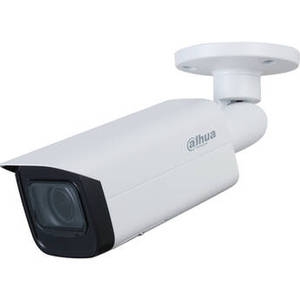

N43AF5Z 4MP Outdoor ePoE Network Bullet Camera with Night Vision


From Dahua Technology | Model #: DAN43AF5Z



See more in Cameras


N43AF5Z 4MP Outdoor ePoE Network Bullet Camera with Night Vision

Product Description

Monitor an outdoor area with the N43AF5Z 4MP ePoE Network Bullet Camera from Dahua Technology. This unit uses a 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Four IR LEDs provide up to 197' of night vision. The camera's 2.7-13.5mm motorized varifocal lens delivers a 104 to 27° horizontal field of view. Two-way audio is possible thanks to an audio input and output and a memory card slot supports microSD cards up to 256GB (available separately). Integrated ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables when compared to running separate wires.

This bullet camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
Camera
Sensor 4 MP 1/3" CMOS
Lens Mount M14
Focal Length 2.7 to 13.5mm
Maximum Aperture f/1.5
Zoom Optical: 5x
Lens Field of View Horizontal: 104 to 27°
Vertical: 55 to 15°
Diagonal: 124 to 31°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.005 Lux
B&W: 0 Lux
Shutter Speed 1/100000 to 1/3 Seconds
Camera Angle Adjustment
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2688 x 1520 at 30 fps (8.192 Mb/s )
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, G.726
Built-In Mic
Built-In Speaker
Audio I/O Input:
RCA
Output:
RCA
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security HTTPS, IEEE 802.1X
Supported Protocols ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profiles G & S, CGI, Milestone, Genetec, P2P
Analytics Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Motion, Scene Change, Smart Motion Detection (Human & Vehicular), Perimeter Protection (Tripwire & Intrusion)
Built-In Installation Aids
OS Compatibility Android
iOS
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 1 / 1
Hardware
Memory 512 MB RAM / 128 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption 9.8 W
Environmental
Operating Temperature -22 to 140°F / -30 to 60°C
Startup Temperature
Storage Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 0 to 95%
IP Rating IP67
IK Rating
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination 4 x IR LEDs up to 196.9' / 60 m
Video Management Software Smart PSS, DSS, DMSS
Supported Languages
Certifications
Material of Construction Metal (Unspecified Type)
Dimensions H: 3.0 x W: 3.1 x L: 9.6" / H: 75.9 x W: 79.0 x L: 244.1 mm
Weight 1.81 lb / 0.82 kg
