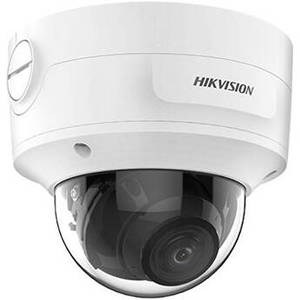

AcuSense PCI-D18Z2S 8MP Outdoor Network Dome Camera with Night Vision
Product Description
Monitor an outdoor area with the AcuSense PCI-D18Z2S 8MP Network Dome Camera from Hikvision. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 20 fps. IR LEDs and a supplemental white light provide up to 131' of night vision. The camera's 2.7-13.5mm varifocal lens delivers a 108.1 to 45.5° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 8 MP 1/1.8" CMOS |
| Lens Mount | M14 |
| Focal Length | 2.7 to 13.5mm |
| Maximum Aperture | f/1.6 |
| Zoom | Optical: 5x |
| Lens Field of View | Horizontal: 108.1 to 45.5° Vertical: 58.4 to 25.7° Diagonal: 127.3 to 52.1° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.003 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 75° |
| DORI Coverage | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 20 fps (16 Mb/s ) 2688 x 1520 at 30 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 4 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, ISUP, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SFTP, SMTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G, S & T, ISAPI, SDK |
| Analytics | Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error), Unattended Baggage Detection, Object Removal Detection, Scene Change Detection, Audio Exception Detection, Video Quality Diagnosis, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of March, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | PoE: 12.9 W DC: 11 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 131.2' / 40 m |
| Video Management Software | iVMS-4200, Hik-Connect, HikCentral |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 6.0 x H: 5.2" / �: 153.5 x H: 133.1 mm |
| Weight | 1.8 lb / 810 g |
