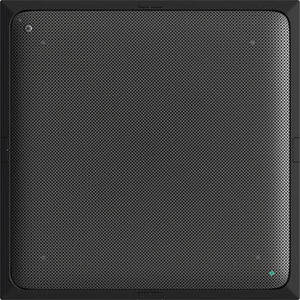

RM-CG Ceiling Array Microphone (Black)


From Yamaha | Model #: YARMCGB



See more in Office Electronics


RM-CG Ceiling Array Microphone (Black)

Product Description

System integrators and installers looking for a complete and customized communication solution for meeting spaces, and classroom audio will be impressed with the black Yamaha RM-CG, a beamforming ceiling array microphone that's part of the ADECIA system and includes remarkable processing technology that enables high-quality communication.

The RM-CG utilizes four auto-tracking beams to track simultaneous speech, allowing the dynamic voice tracking technology to scan for the human voice and ensure lively conversations. Yamaha incorporated several innovative technologies into the system including Adaptive Echo Canceller, Automatic Gain Control, Noise Reduction, and Dereverberation.

The RM-CG interfaces with the RM-CR remote conference processor (sold separately) for automatic detection and configuration. A single PoE cable connection avoids troublesome wiring and enables network audio support and control via Dante. The RM-CG supports three types of mounting methods for use with a variety of ceiling conditions.

Type Ceiling Array Microphone
Network Ether1: Dante, Remote Control, Web UI, PoE Cable Requirements: Cat 5e or Higher (STP)
Frequency Response 160 Hz to 16 kHz (-10 dB)
Sample Rate 48 kHz
Bit Depth 24-Bit
Latency 58 ms (Includes Signal Processing)
Audio Input & Output Dante
1 x Input
2 x Output

In: AEC Reference Signal
Out 1: Output of Beam Mix
Out 2: Output of Beam Mix (Simple Processed)
Input Level 117.8 dB SPL
Self Noise -0.8 dBA
Signal-to-Noise Ratio (SNR) 94.8 dBA
Sensitivity -23.8 dBFS/Pa
Dynamic Range 118.6 dBA
Signal Processing Multi Beam Tracking, Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain
Maximum Device Control Maximum Device Number with RM-CR: 2 (Connection with Other than RM-CR Is Not Limited to This Device)
Indicators Front Indicator (Mute/Unmute & Status), Network Port Indicator
Mount Ceiling Mount (Can't Replace a Grid Ceiling Panel), Wire Mount, VESA Mount
Water/Dust Protection IP5X for Dust Protection (with Terminal Cover)
Plenum Rating UL2043 (with Terminal Cover)
Color Black
Temperature & Humidity In Operation
Temperature: 32 to 104°F / 0 to 40°C
Humidity: 30 to 90% (No Condensation)

Storage
Temperature: -4 to 140°F / -20 to 60°C
Humidity: 20% to 90% (No Condensation)
Power Power Requirements: PoE (IEEE 802.3af), 48 VDC
Maximum Power Consumption: 7.2 W
Dimensions 22 x 22 x 3.5" / 56 x 56 x 9 cm
Weight 12.3 lb / 5.6 kg
