Product Description

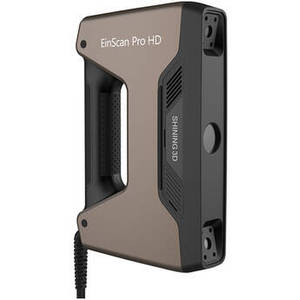

Made for designers and engineers, the EinScan Pro HD from Afinia/ is a 3D scanner that can be operated handheld or, using an optional Industrial Pack, fixed with or without a turntable. It captures high resolution scans using an LED projection module with stripe pattern scanning and a minimum point distance setting of 0.2mm. It is also able to capture a wider range of objects, especially ones with dark or black colors and metal surfaces. It can process up to 3,000,000 points per second in handheld mode and less than 0.5 seconds in Fixed Mode. When working in Fixed Mode, objects may also be moved during scanning, with an accuracy of up to 0.04mm and a volumetric accuracy of 0.045mm +0.3mm/m. Included is free ExScan Pro scanning software.
| General | |
| Scan Speed | 0.5 Second (Fixed) |
| Accuracy | 0.04 mm (HD, Fixed) 0.1 mm (Rapid) |
| Point Distance | 7.9 to 11.8 mil / 0.2 to 0.3 mm (HD) 9.84 to 11.8 mil / 0.25 to 0.3 mm (Rapid) |
| Working Distance | 20.1" / 510 mm |
| DOF Scale | �3.9" / �100 mm |
| Light Source | LED |
| File Formats | ASC, OBJ, P3, PLY, STL |
| System Requirements | |
| OS Compatibility | Windows 10 *As of September, 2021: Check with manufacturer for the most up-to-date compatibility |
| App Compatible | |
| CPU Requirement | 3.2 GHz Intel Core i7-8700 6-Core and Faster or 3.2 GHz Intel Core i5-3470 Quad-Core and Faster or 3.4 GHz Intel Core i7-3770 Quad-Core and Faster or 3.2 GHz Intel Xeon E3-1230 Quad-Core and Faster |
| Memory Requirement | 4 GB (64 GB Recommended) |
| GPU Requirement | NVIDIA GeForce GTX 660 or NVIDIA GeForce GTX 1080 or NVIDIA Quadro P1000 |
| VRAM Requirement | 4 GB (Minimum) |
| Storage Requirements | |
| Power & Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Physical | |
| Weight | 2.76 lb / 1.25 kg |
