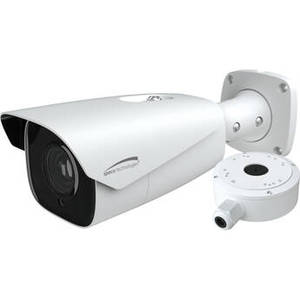

O2BLP1M 2MP Outdoor Network License Plate Recognition Bullet Camera with Night Vision

Product Description
Capture license plates of moving vehicles day and night with the O2BLP1M 2MP Outdoor Network License Plate Recognition Bullet Camera from Speco Technologies. This unit captures license plates of vehicles traveling at up to 40 mph. It features a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 60 fps. IR LEDs provide up to 330' of night vision. The camera's 7-22mm motorized varifocal lens delivers a 44 to 17.6° horizontal field of view. Two-way audio is possible thanks to an audio input and output. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in memory card slot accepts microSD cards up to 128GB (available separately).
This LPR camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera's enclosure is IP67-rated for safe outdoor use.
This LPR camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera's enclosure is IP67-rated for safe outdoor use.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 7 to 22mm |
| Maximum Aperture | |
| Zoom | Optical: 3.14x |
| Lens Field of View | Horizontal: 44 to 17.6° Vertical: 25.6 to 10° Diagonal: 49.7 to 20.2° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/25 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 90° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 60 fps (6 Mb/s ) |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile T |
| Analytics | Video Tampering Detection, Scene Change Detection, License Plate Recognition |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of December, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 11 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | IR LEDs up to 330' / 100.6 m |
| Video Management Software | SecureGuard VMS & CMS for PC Applications SecureGuard Client & Speco Blue for iOS & Android |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 3.5 x W: 3.9 x L: 11.0" / H: 88.9 x W: 99.1 x L: 279.4 mm |
| Weight | 2.3 lb / 1 kg |
