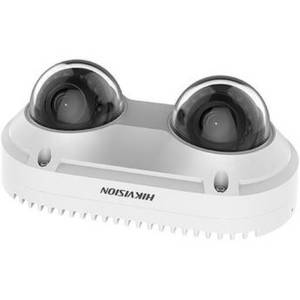

PanoVu DS-2CD6D82G0-IHS 16MP Outdoor Dual-Sensor Network Camera with Night Vision, 2.8mm Lens & Heater


From Hikvision | Model #: HIDS2CD68228



See more in Cameras


PanoVu DS-2CD6D82G0-IHS 16MP Outdoor Dual-Sensor Network Camera with Night Vision, 2.8mm Lens & Heater

Product Description

Monitor an outdoor area with the PanoVu DS-2CD6D82G0-IHS 16MP Outdoor Dual-Sensor Network Camera from Hikvision. This unit uses two 8MP 1/2.5" progressive scan CMOS sensors to capture 3840 x 2160 resolution video per sensor at 24 fps, for a total resolution of 16MP. IR LEDs and supplemental white light provide up to 33' of night vision. The camera is equipped with dual 2.8mm fixed lenses that each deliver a 103° horizontal field of view. Two-way audio is possible thanks to two built-in microphones, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed with a built-in heater in an IP67- and IK10-rated metal enclosure that is suitable for outdoor use in areas at risk of vandalism.

Camera
Sensor 2 x 8 MP 1/2.5" CMOS
Lens Mount M12
Focal Length 2.8mm
Maximum Aperture f/2
Zoom
Lens Field of View Horizontal: 103°
Vertical: 53°
Diagonal: 124°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.056 Lux
B&W: 0 Lux
Shutter Speed 1/100000 to 1 Seconds
Camera Angle Adjustment Horizontal: -90 to 90°
Vertical: 0 to 60°
DORI Coverage
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 3840 x 2160 at 24 fps (16 Mb/s )
Supported Video Compression H.264, H.265, MJPEG
Multi-View Streaming Yes, 2 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats G.711, G.722.1, G.726, MP2L2, PCM
Built-In Mic Yes
Built-In Speaker
Audio I/O
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark
Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profiles G, S & T, ISAPI, SDK
Analytics Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error)
Built-In Installation Aids
OS Compatibility Android
iOS
*As of January, 2021: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 1 / 1
Hardware
Memory
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption 11 W (With Heater)
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Startup Temperature
Storage Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 0 to 95%
IP Rating IP67
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
1 x Serial 9-Pin (RS-485)
Illumination 850 nm IR LEDs up to 32.8' / 10 m
Video Management Software iVMS-4200, Hik-Connect
Supported Languages Brazilian Portuguese
Bulgarian
Croatian
Czech
Danish
Dutch
English
Estonian
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Latvian
Lithuanian
Norwegian
Polish
Portuguese
Romanian
Russian
Serbian
Slovak
Slovenian
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Vietnamese
Certifications
Material of Construction Metal (Unspecified Type)
Dimensions H: 3.3 x W: 6.5 x L: 2.7" / H: 84.6 x W: 164.3 x L: 67.4 mm
Weight 1.7 lb / 770 g
