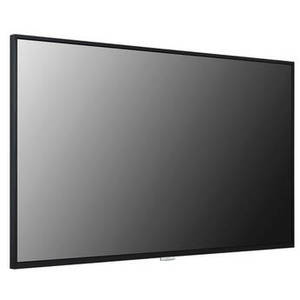

UH5F-H 43" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display
Product Description
Conduct productive meetings or advertise your business or product with the LG UH5F-H 43" Class 4K UHD Digital Signage & Conference Room Smart IPS LED Display. The onboard webOS platform provides a variety of tools to meet your signage and communication needs. The display features a 4K UHD native resolution for playback of compatible media in enhanced detail, and its maximum brightness level of 500 cd/m² helps improve visibility in high-brightness environments, such as a retail store.
The UH5F-H features a slim bezel design, a narrow overall depth, and a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, or the included remote control.
The UH5F-H features a slim bezel design, a narrow overall depth, and a removable logo to help keep your clients' focus on your content instead of the chassis. Its IP5X dust-resistance rating allows for installation in places where regular cleaning is difficult. It can be controlled via various control protocols, including Crestron, via RS-232C, LAN, or the included remote control.
| Display | |
| Screen Size (Diagonal) | 43" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | 95% Rec. 709 |
| HDR Compatibility | |
| Brightness | 500 cd/m� (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Dynamic Contrast Ratio | 1,000,000:1 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI Audio, Video 1 x DisplayPort Audio, Video 1 x DVI-D Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x Unspecified USB, USB-A |
| Ethernet Ports | 1 |
| Control | IR via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Input RS-232C via 1/8" / 3.5 mm Output |
| Wi-Fi | Built-in |
| Number of OPS/Expansion Slots | 1 |
| General | |
| TV Tuner | No |
| Display Orientation | 30� Downward Angle, Landscape, Portrait |
| HDCP Support | Yes |
| Maximum Multiple Display Configuration | 15 x 15 |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | 50000 Hours |
| Surface | |
| Surface Treatment | Anti-Glare |
| Haze Level | 28% |
| Audio | |
| Built-In Speakers | Yes |
| Processing | |
| Hardware | |
| Operating System | webOS 4.1 |
| Processor | |
| CPU | |
| RAM | 8 GB |
| OS Compatibility | |
| Built-In Mic | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 75.0 W Maximum: 110.0 W Standby: 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Adapter Type | Internal |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | 10 to 80% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | CE, ENERGY STAR, FCC-A *as per Manufacturer |
| Physical | |
| Wall Mounting | 200 x 200 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | IP5X |
| IK Rating | |
| IR Sensor | Yes |
| Glass Thickness | |
| Bezel Thickness | 9.9 mm (Right/Top/Left) 14.4 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 37.9 x 22.4 x 1.6" / 962.5 x 568.0 x 39.9 mm |
| Stand Dimensions | |
| Weight | 24.7 lb / 11.2 kg |
