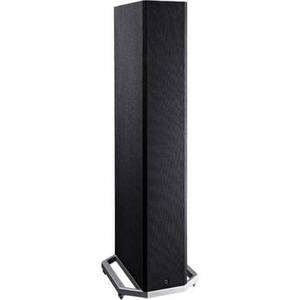

BP9020 Floorstanding Speaker with Integrated 8" Powered Woofer (Black, Single)
Product Description
Enjoy a broad soundstage with the Definitive Technology BP9020 Floorstanding Speaker. It features a built-in side-firing 8" powered woofer to augment the bass and has a rear-firing 3.5" midrange driver to complement the front-firing 1" tweeter, two 3.5" midrange drivers, and aforementioned woofer. Use of both front- and rear-firing drivers helps to create a broader, more balanced soundstage than with a front-firing driver array alone.
The BP9020 accepts 50 to 200W from your amplifier via its binding post inputs, while the powered woofer connects via an RCA LFE port. A dedicated height speaker is available, offering a viable solution for those looking to eventually upgrade to an object-based audio configuration.
The BP9020 accepts 50 to 200W from your amplifier via its binding post inputs, while the powered woofer connects via an RCA LFE port. A dedicated height speaker is available, offering a viable solution for those looking to eventually upgrade to an object-based audio configuration.
| Disc Player | |
| Compatible Disc Media | |
| Disc Capacity | |
| Radio Tuner | |
| AM/FM Presets | |
| Tuner Range | |
| Clock | |
| Party Features | |
| Wired Connectivity | |
| Speaker System | |
| Channel Configuration | 1.1-Channel |
| Speaker Configuration | 3-Way |
| Power Handling | 150 W RMS |
| Recommended Amplifier Power | 50 to 200 W |
| Bi-Amp Capability | None |
| Amplifier Power Rating | |
| Drivers | 2 x 3.5" / 88.9 mm Midrange (Front-Firing) 1 x 1" / 25.4 mm Aluminum Tweeter (Front-Firing) 1 x 3.5" / 88.9 mm Midrange (Rear-Firing) |
| Passive Radiators | Yes |
| Enclosure Type | Bass-Reflex |
| Ports | |
| Frequency Response | 28 Hz to 40 kHz |
| Frequency Range | |
| Impedance | 8 Ohms |
| Magnetic Shielding | |
| Wired Connectivity | 1 x Binding Post Pair Input (Audio) 1 x Binding Post Pair Input (for Optional Height Speaker) |
| Media Card Slots | |
| Maximum Wire Gauge | |
| Amplifier Class | Class-D |
| Constant Voltage / Transformer Taps | |
| Crossover | |
| SPL | |
| Sensitivity | 92 dB |
| SNR (Signal-to-Noise Ratio) | |
| THD (Total Harmonic Distortion) | |
| Input Impedance | |
| Input Sensitivity | |
| Controls | |
| Subwoofer | |
| Subwoofer Type | |
| Enclosure Type | |
| Power Handling | |
| Recommended Amplifier Power | |
| Amplifier Power Rating | 80 W |
| Drivers | 1 x 8" / 20.3 cm |
| Magnet | |
| Voice Coil | |
| Passive Radiators | |
| Ports | |
| Frequency Response | |
| Frequency Range | |
| Amplifier Class | Class-D |
| Impedance | |
| Magnetic Shielding | |
| Connectivity | 1 x RCA (LFE) |
| Crossover Frequency | |
| Maximum SPL | |
| Sensitivity | |
| Input Impedance | |
| Input Sensitivity | |
| SNR (Signal-to-Noise Ratio) | |
| Total Harmonic Distortion (THD) | |
| Phase Adjustment | |
| Wireless Connection Protocols | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| NFC | |
| Bluetooth | |
| Multipoint Support | |
| Maximum Paired Devices | |
| Wireless Range | |
| Bluetooth Profiles | |
| Supported Audio Codecs | |
| Power | |
| AC Input Power | 90 to 264 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Consumption | |
| Battery Type | |
| Internal Battery Capacity | |
| Expected Battery Life | |
| Battery Charging Time | |
| Supported File Formats | |
| Supported Sample Rates | |
| Processor Requirement | |
| RAM Requirements | |
| Storage Requirements | |
| Required Hardware | |
| Physical | |
| IP Rating | |
| Placement & Mounting Options | Floorstanding |
| Floor Contacts | Carpet Spikes (Adjustable) |
| Cabinet Material | |
| Grille | |
| Cable Length | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | 13 x 35.5 x 11" / 33 x 90.2 x 27.9 cm (without Base) 13 x 36.8 x 11" / 33 x 93.4 x 27.9 cm (with Base) |
| Weight | 30.0 lb / 13.6 kg |
