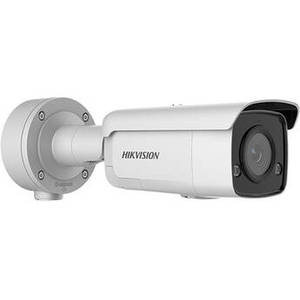

AcuSense PCI-LB15F4SL 5MP Outdoor Network Bullet Camera with Night Vision
Product Description
Monitor an outdoor area with the AcuSense PCI-LB15F4SL 5MP Network Bullet Camera with Night Vision from Hikvision. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 20 fps. IR LEDs and supplemental white light provide up to 197' of night vision. The camera's 4mm fixed lens delivers a 78° horizontal field of view. Two-way audio is possible thanks to a built-in speaker and microphone, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This bullet camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for outdoor use.
This bullet camera complies with ONVIF profiles G and S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for outdoor use.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | M12 |
| Focal Length | 4mm |
| Maximum Aperture | f/1.4 |
| Zoom | |
| Lens Field of View | Horizontal: 78° Vertical: 58° Diagonal: 102° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.003 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2592 x 1944 at 20 fps (8 Mb/s ) 2688 x 1520 at 30 fps |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 4 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | Yes |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G & S, ISAPI, SDK |
| Analytics | Motion Detection, Video Tampering Alarm, Exception (Network Disconnected, IP Address Conflict, Illegal Login, HDD Full, HDD Error), Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of January, 2021: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3at (30 W) |
| Power Consumption | PoE: 13 W DC: 12 W |
| Environmental | |
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Startup Temperature | |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
| Operating Humidity | 0 to 95% |
| IP Rating | IP66 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 196.9' / 60 m |
| Video Management Software | iVMS-4200, Hik-Connect, Hik-Central |
| Supported Languages | Brazilian Portuguese Bulgarian Croatian Czech Danish Dutch English Estonian Finnish French German Greek Hungarian Italian Japanese Korean Latvian Lithuanian Norwegian Polish Portuguese Romanian Russian Serbian Slovak Slovenian Spanish Swedish Thai Traditional Chinese Turkish Ukrainian Vietnamese |
| Certifications | |
| Material of Construction | Metal (Unspecified Type), Plastic |
| Dimensions | H: 3.5 x W: 3.7 x L: 12.8" / H: 88.8 x W: 93.3 x L: 324.6 mm |
| Weight | 2.4 lb / 1110 g |
