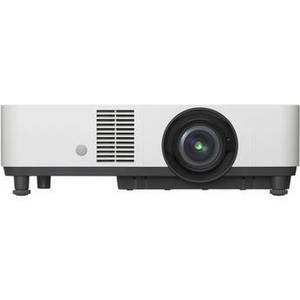

VPL-PHZ50 5000-Lumen WUXGA Corporate & Education Laser 3LCD Projector
Product Description
Enjoy bright images in your conference room or classroom with the Sony VPL-PHZ50 5000-Lumen WUXGA Corporate & Education Laser 3LCD Projector. Its 5000 lumens of brightness allows it to overcome ambient light in relatively bright rooms, enabling installation in places where you may not be able to dim the lights. It sports a 3LCD display system with a 1920 x 1200 WUXGA native resolution for viewing HD video and detailed pictures or data. The projector's 1.23 to 1.97:1 throw ratio and 1.6x zoom provide a range of throw distances for flexible installation options.
The VPL-PHZ50 features HDBaseT, VGA, composite video, and two HDMI inputs for connecting to nearly any source, as well as an analog audio output for passing sound from the projector to your sound system of choice. The projector is controllable via HDBaseT, RS-232, or the included remote control.
The VPL-PHZ50 features HDBaseT, VGA, composite video, and two HDMI inputs for connecting to nearly any source, as well as an analog audio output for passing sound from the projector to your sound system of choice. The projector is controllable via HDBaseT, RS-232, or the included remote control.
| Image Display | |
| Display System | 3-Chip 0.64" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 @ 30 Hz |
| Maximum Brightness | 5000 Lumens (ISO) |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | |
| Scan | Horizontal: 15 to 92 kHz Vertical: 24 to 92 Hz |
| Lens | |
| Focus | Manual |
| Lens Shift | Horizontal: ± 15% Vertical: -35 + 55% |
| Optical Zoom | Manual: 1.6x |
| Throw Ratio | 1.23 to 1.97:1 |
| Projection Size | 40 - 300" / 101.6 - 762.0 cm |
| Features | |
| Keystone Correction | Horizontal: ± 30° Vertical: ± 30° |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 16W |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x RJ45 (HDBaseT) Audio, Control, LAN, Video 2 x HDMI (HDMI) Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Input 1 x RCA (Composite) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini (RS-232) Audio Output 1 x DE-9/DB-9 (RS-232) Control 1 x RJ45 (Ethernet) LAN 1 x USB-A (USB 2.0) Power Output 1 x USB-A (USB 2.0) Service |
| Processor | |
| CPU | |
| General | |
| Light Source | Laser Phosphor |
| Fan Noise | Full Brightness: 35 dB Medium Brightness: 32 dB |
| Security | Cable Lock Slot |
| Supported Languages | Arabic Czech Dutch English Farsi Finnish French German Greek Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Slovak Spanish Swedish Thai Turkish Vietnamese |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.9 to 4.4 A |
| DC Input Power | |
| Heat Dissipation | 1502 BTU (AC 100 to 120V) 1427 BTU (AC 220 to 240V) |
| Power Consumption | Full Brightness: 440 W Standby Mode (Lamp Off): 16 W |
| Operating Altitude | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Dimensions (W x H x D) | 16.6 x 5.1 x 13.3" / 422.0 x 129.0 x 338.0 mm With Protrusions 16.6 x 3.9 x 13.1" / 422.0 x 100.0 x 333.0 mm Without Protrusions |
| Weight | 14.6 lb / 6.6 kg |
