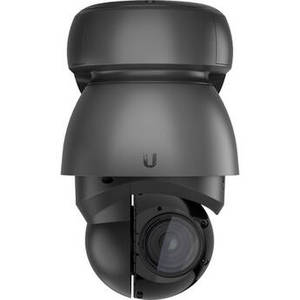

UniFi UVC-G4-PTZ 4K UHD Outdoor Network PTZ Camera
Product Description
The UniFi UVC-G4-PTZ 4K UHD Outdoor Network PTZ Camera from Ubiquiti Networks uses a Sony 1/1.8" image sensor to capture 3840 x 2160 resolution video at 24 fps. IR LED illumination provides the ability to capture video in low-light conditions. The camera's lens delivers a 64 to 3° horizontal field of view and 22x optical zoom. Integrated PoE technology simplifies connectivity by transferring data and power over one cable. The UniFi Protect app for iOS and Android enables remote viewing and camera management.
This PTZ camera is housed in an IP66-rated enclosure that is suitable for outdoor use.
This PTZ camera is housed in an IP66-rated enclosure that is suitable for outdoor use.
| Camera | |
| Sensor | 8 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | |
| Maximum Aperture | |
| Zoom | Optical: 22x |
| Lens Field of View | Horizontal: 64 to 3° Vertical: 37 to 2° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | |
| Shutter Speed | |
| Camera Angle Adjustment | |
| DORI Coverage | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3840 x 2160 at 24 fps |
| Supported Video Compression | H.264 |
| Multi-View Streaming | |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | |
| Supported Protocols | |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | |
| Analytics | |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of December, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | No |
| Event Action | |
| Data Streaming | Yes |
| Alarm I/O | None |
| Hardware | |
| Memory | 1 GB RAM / 256 MB Flash |
| Media/Memory Card Slot | None |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3bt (60 W) |
| Power Consumption | 42.9 W |
| Environmental | |
| Operating Temperature | -40 to 122°F / -40 to 50°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 90% |
| IP Rating | IP66 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs |
| Video Management Software | UniFi Protect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type), Plastic |
| Dimensions | H: 13.4 x W: 8.8 x L: 8.1" / H: 341.3 x W: 223.7 x L: 207.0 mm |
| Weight | 8.4 lb / 3.8 kg |
