Product Description

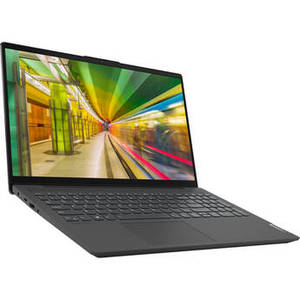

Employing a 15.6" 1920 x 1080 TN display with a 135° hinge, the IdeaPad 5 features integrated Intel UHD Graphics and can extend or mirror content to additional displays via the USB Type-C or HDMI 1.4b ports. Media can be accessed via a 4-in-1 card reader that supports MMC, SD, SDHC, or SDXC memory cards. And, with a 1MP HD webcam, dual-array microphone, and integrated speaker system, users can easily videoconference at home or out and about. When the webcam is not in use, you can even block the lens with a privacy shutter, ensuring privacy. Further safety measures include power-on, HDD, and supervisor passwords, as well as a dedicated TPM chip and touch-style fingerprint reader. In addition to a touchpad, the user interface includes a backlit keyboard with a number pad. This laptop features an integrated battery that can last for up 12 hours on a single charge. The Lenovo 15.6" IdeaPad 5 runs on the Windows 10 Home Operating System.
| Operating System | Windows 10 Home (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| Processor | Intel Core i5-1035G1 (10th Gen) |
| CPU Socket | |
| CPU | 1 to 3.6 GHz Quad-Core |
| L3 Cache | 6 MB |
| Memory Type | 3200 MHz DDR4 |
| Total Installed Memory | 8 GB |
| Memory Configuration | 8 GB (Onboard) |
| Maximum Memory Capacity | |
| Memory Slot Type | |
| Memory Slots | |
| Buffered Memory | |
| ECC Memory | |
| Intel Optane Memory | |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics |
| Afterburner | |
| Display | |
| Panel Type | TN LCD |
| Size | 15.6" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Touchscreen | No |
| Finish | |
| Maximum Brightness | 250 cd/m2 |
| Color Gamut | 45% NTSC |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Variable Refresh Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | |
| 2.5" Slots | 1 x 7 mm (Available) |
| SSD Slots | 1 x M.2 2280 PCIe (Unspecified Interface) x4 (In Use) |
| Total Installed Capacity | 512 GB |
| Solid State Storage | 1 x 512 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | None |
| I/O | |
| Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C | 1 x USB 3.1 / USB 3.2 Gen 2 (Supports DisplayPort and Power Delivery) |
| Display | 1 x HDMI 1.4b |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | 2 x 2 W |
| Built-In Microphones | 2 |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Communications | |
| Ethernet | None |
| Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
| MU-MIMO Support | 2 x 2 |
| Bluetooth | 5.1 |
| 5G NR | |
| GPS | None |
| NFC | No |
| Webcam | User-Facing: 1 MP (720p) |
| Battery | |
| Battery Chemistry | Lithium-Ion |
| Estimated Battery Life | 12 Hours |
| Keyboard & Mouse | |
| Keyboard | Notebook Keyboard with Backlight, Number Pad |
| Pointing Device | TouchPad |
| General | |
| Security | HDD User Password Protection, Power-On Password, Fingerprint Reader, Dedicated TPM Security Chip, Webcam Blocker |
| Power Supply | 65 W with Barrel |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | 14.07 x 9.18 x 0.78" / 357.4 x 233.17 x 19.9 mm |
| Weight | 3.75 lb / 1.7 kg |
