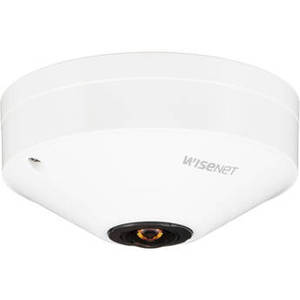

WiseNet Q Series QNF-8010 6MP Network Fisheye Dome Camera
Product Description
Capture a 6MP panoramic view of your property with the white WiseNet Q Series QNF-8010 6MP Network Fisheye Dome Camera from Hanwha Techwin. Equipped with a 1/1.8" 6MP CMOS sensor and a 1.14mm fisheye lens, the QNF-8010 captures video at resolutions up to 2048 x 2048 at 30 fps in a 187 x 187° field of view. The camera delivers color video in lighting conditions as low as 0.2 lux and offers digital day/night functionality. Designed for easy setup, the camera uses PoE technology to enable you to run just one cable for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance devices.
| Camera | |
| Sensor | 6 MP 1/1.8" CMOS |
| Lens Mount | |
| Focal Length | 1.1mm |
| Maximum Aperture | f/2.5 |
| Zoom | |
| Lens Field of View | Horizontal: 187° Vertical: 187° Diagonal: 187° |
| IR Cut Filter | |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.2 Lux |
| Shutter Speed | 1/12000 to 2 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2048 x 2048 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log |
| Supported Protocols | ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PIM, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S, G & T, SUNAPI (HTTP API), Wisenet Open Platform |
| Analytics | Defocus Detection, Motion Detection (up to Eight Polygonal Zones), Tamper Detection, People Counting, and Heatmap |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8.1 Windows 10 macOS 10.12 to 10.14 *As of January, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | |
| Alarm I/O | |
| Hardware | |
| Memory | 1024 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | PoE: 6.4 W |
| Environmental | |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Startup Temperature | |
| Storage Temperature | -58 to 140°F / -50 to 60°C |
| Operating Humidity | 0 to 89% |
| IP Rating | IP42 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs up to 49' / 14.94 m |
| Video Management Software | |
| Supported Languages | Czech Dutch English French German Greek Hungarian Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Swedish Turkish |
| Certifications | |
| Material of Construction | Plastic |
| Dimensions | �: 3.9 x H: 1.9" / �: 99.0 x H: 49.0 mm |
| Weight | 0.7 lb / 320 g |
