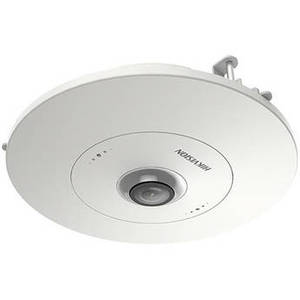

DS-2CD6365G0E-S/RC 6MP Fisheye Network Camera with 1.27mm Lens
Product Description
Monitor your room with the DS-2CD6365G0E-S/RC 6MP Fisheye Network Camera from Hikvision. This camera uses a 1/1.8" progressive scan CMOS sensor to capture 3072 x 2048 resolution video at 30 fps. The camera's 1.27mm fixed lens delivers a 360° panoramic field of view. Fourteen fisheye and panoramic display modes are supported. Two-way audio communication is possible thanks to two built-in microphones, an audio input, and an audio output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This fisheye camera complies with ONVIF profiles G & S, making it compatible with a wide range of surveillance devices.
This fisheye camera complies with ONVIF profiles G & S, making it compatible with a wide range of surveillance devices.
| Camera | |
| Sensor | 6 MP 1/1.8" CMOS |
| Lens Mount | M12 |
| Focal Length | |
| Maximum Aperture | |
| Zoom | |
| Lens Field of View | Horizontal: 360° |
| IR Cut Filter | |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.01 Lux B&W: 0.001 Lux |
| Shutter Speed | 1/100000 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 3072 x 2048 at 30 fps (16 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
| Supported Protocols | Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles G & S, ISAPI |
| Analytics | Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Objection Removal Detection, Audio Exception Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of March, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | PoE: 12 W DC: 6 W |
| Environmental | |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | |
| Video Management Software | iVMS-4200, Hik-Connect |
| Supported Languages | |
| Certifications | |
| Material of Construction | Metal (Unspecified Type), Plastic |
| Dimensions | �: 6.5 x H: 2.7" / �: 165.0 x H: 69.0 mm |
| Weight | 1.06 lb / 0.48 kg |
