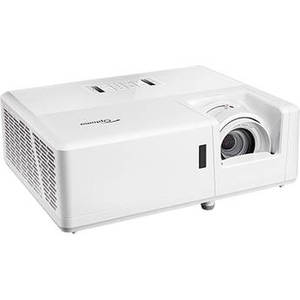

ZW400 4000-Lumen WXGA Laser DLP Presentation Projector
Product Description
Enjoy bright images and high dynamic contrast with the Optoma ZW400 4000-Lumen WXGA Laser DLP Presentation Projector. Its native 1280 x 800 resolution displays data clearly at various viewing distances, while its 250,000:1 dynamic contrast ratio helps enhance detail in dark images. Its 1.19 to 1.54:1 throw ratio allows you to place the projector relatively far from the screen without losing focus.
The ZW400 features one VGA and two HDMI inputs, one of which is MHL-compatible for wired streaming from your compatible smart device. A 10W speaker mitigates the need for an external speaker system. An IR remote control with a built-in laser pointer is included as an added convenience.
The ZW400 features one VGA and two HDMI inputs, one of which is MHL-compatible for wired streaming from your compatible smart device. A 10W speaker mitigates the need for an external speaker system. An IR remote control with a built-in laser pointer is included as an added convenience.
| Image Display | |
| Display System | 0.65" DMD DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 |
| Maximum Brightness | 4000 Lumens (ANSI) |
| Uniformity | 75% |
| Offset | 113% |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Contrast Ratio | 1800:1 |
| Dynamic Contrast Ratio | 250,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Packing Side by Side Top Bottom |
| Color Wheel | 4-Segment (RGBY) |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Vertical: 24 to 85 Hz or 120 Hz Horizontal: 15.375 to 91.146 kHz |
| Lens | |
| Focus | Manual |
| Lens | f/2.43 - 2.78 (f = 16.9 - 21.6 mm) |
| Optical Zoom | Manual: 1.3x |
| Throw Distance | 3 - 32.6' / 0.9 - 9.9 m |
| Throw Ratio | 1.19 to 1.54:1 |
| Projection Size | 19.7 - 315.8" / 50.0 - 802.1 cm |
| Features | |
| Keystone Correction | Vertical: ± 30° |
| Supported HDR Input Formats | HDR10, Hybrid Log Gamma |
| Digital Zoom | 2x |
| Multi-Input Support (PIP/PBP) | |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 10W |
| Projection Tilt Option | Yes |
| Remote | Laser Pointer |
| Input/Output Connectors | |
| Inputs/Outputs | 1 x HDMI (HDMI 2.0) Audio, Video Input 1 x HDMI (HDMI) Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x USB-A (USB 2.0) Power Output 1 x Micro-USB (USB 2.0) Service Input |
| HDCP Support | Version 2.2 |
| Hardware | |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
| General | |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise | Medium Brightness: 32 dB |
| Security | Cable Lock Slot Password Protection |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Consumption | Full Brightness: 252 W Medium Brightness: 219 W Low Brightness: 186 W |
| Operating Altitude | 0 to 10,000' / 0.0 to 3048 m |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | |
| Operating Humidity | 0 to 85% |
| Storage Humidity | |
| Dimensions (W x H x D) | 13.3 x 4.8 x 10.5" / 33.8 x 12.2 x 26.7 cm |
| Weight | 9.4 lb / 4.3 kg |
