Product Description

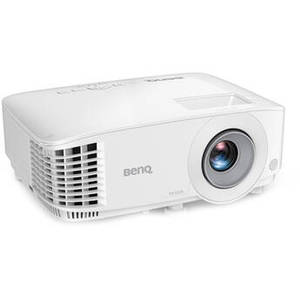

Project presentations and multimedia content onto a big screen with the BenQ MW560 4000-Lumen WXGA DLP Projector. It outputs up to 4000 ANSI lumens of brightness and has a 20,000:1 dynamic contrast ratio to help produce clear details even in dark areas of the image. Various picture modes adjust the settings of the projector to accommodate a variety of content types.
The MW560 has VGA, composite video, S-Video, and two HDMI inputs for connecting your analog and digital HD devices such as a Blu-ray player, cable/satellite box, computer, and more. A VGA output lets you pass video through to another projector or display. The MW560 includes a VGA cable and an IR remote control for additional convenience.
The MW560 has VGA, composite video, S-Video, and two HDMI inputs for connecting your analog and digital HD devices such as a Blu-ray player, cable/satellite box, computer, and more. A VGA output lets you pass video through to another projector or display. The MW560 includes a VGA cable and an IR remote control for additional convenience.
| Image Display | |
| Display System | 0.65" DMD DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 4000 Lumens (ANSI) |
| Offset | 100% ± 2.5% |
| Aspect Ratio | Native: 16:9 |
| Dynamic Contrast Ratio | 20,000:1 |
| DLP Link 3D | Yes |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15 to 102 kHz Vertical: 23 to 120 Hz |
| Lens | |
| Optical Zoom | 1.1x |
| Throw Ratio | 1.55 to 1.7:1 (87" Screen Size @ 9.5' / 2.9 m) |
| Projection Size | 65 - 150" / 165.1 - 381.0 cm |
| Features | |
| Keystone Correction | Auto-Vertical: ± 40° |
| Digital Zoom | |
| Multi-Input Support (PIP/PBP) | |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
| Input/Output Connectors | |
| Inputs/Outputs | 2 x HDMI (HDMI) Audio, Video Input 1 x DE-15/DB-15 (VGA) Video Input 1 x DE-15/DB-15 (VGA) Video Output 1 x 4-Pin DIN (S-Video) Video Input 1 x RCA (Composite) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Mini-USB (USB 2.0) Service Input 1 x USB-A (USB 2.0) Power Output 1 x DE-9/DB-9 (RS-232) Control Input |
| Hardware | |
| Processor | |
| CPU | |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
| General | |
| Light Source | Lamp |
| Expected Lamp Life | Full Brightness: 6000 Hours Medium Brightness: 10,000 Hours Low Brightness: 15,000 Hours |
| Fan Noise | Full Brightness: 34 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot Security Bar |
| Supported Languages | Arabic Bulgarian Croatian Czech Danish Dutch English Farsi Finnish French German Greek Hindi Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Power Consumption | Full Brightness: 280 W Medium Brightness: 260 W Low Brightness: 215 W Standby Mode (Lamp Off): < 0.5 W |
| Operating Altitude | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Dimensions (W x H x D) | 11.7 x 4.7 x 8.7" / 296.0 x 120.0 x 221.0 mm |
| Weight | 5.1 lb / 2.3 kg |
