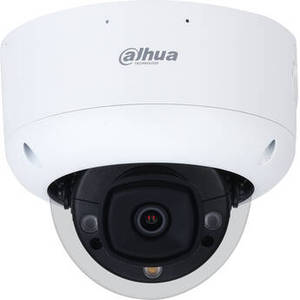

Starlight N55DY82 5MP 5-in-1 Outdoor Network ePoE Dome Camera with Night Vision & Heater


From Dahua Technology | Model #: DAN55DY82



See more in Cameras


Starlight N55DY82 5MP 5-in-1 Outdoor Network ePoE Dome Camera with Night Vision & Heater

Product Description

Monitor an outdoor area with the Starlight N55DY82 5MP 5-in-1 Network ePoE Dome Camera with Night Vision from Dahua Technology. This camera uses a 1/2.7" progressive scan CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. Two IR LEDs provide up to 98' of night vision. Additionally, a white light provides up to 49' of illumination in low-light conditions. A 2.8mm fixed lens delivers a 98° horizontal field of view. Analytics include face and face mask detection, perimeter protection with active alarm, people counting, tampering, memory card error, network error, unauthorized access, IP address conflict, motion, missing/abandoned object, scene change, and heat mapping.

Two-way audio is possible thanks to a built-in microphone, speaker, audio input, and audio output. An onboard memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Additionally, ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables when compared to running separate wires.

This dome camera is equipped with a built-in heater. It complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. The camera's enclosure is rated IP67 and IK10 for safe outdoor use in areas at risk of vandalism.
Camera
Sensor 5 MP 1/2.7" CMOS
Lens Mount M12
Focal Length 2.8mm
Maximum Aperture f/1.6
Zoom
Lens Field of View Horizontal: 98°
Vertical: 71°
Diagonal: 129°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.005 Lux
B&W: 0 Lux
Shutter Speed 1/100000 to 1/3 Seconds
Camera Angle Adjustment Horizontal: 0 to 355°
Vertical: 0 to 80°
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2592 x 1944 at 30 fps (8.192 Mb/s )
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, G.722.1, G.723, G.726, G.729, MP2L2, PCM
Built-In Mic Yes
Built-In Speaker Yes
Audio I/O Input:
RCA
Output:
RCA
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security HTTPS, IEEE 802.1X
Supported Protocols ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) ONVIF Profiles G, S & T, CGI, Milestone, Genetec, SDK, API
Analytics Tampering Memory Card Error Network Error Unauthorized Access IP Address Conflict Motion Missing/Abandoned Object Scene Change Heat Map Perimeter Protection with Active Alarm People Counting Face Detection Face Mask Detection Smart Motion Detection
Built-In Installation Aids
OS Compatibility Android
iOS
*As of October, 2020: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O
Hardware
Memory 128 MB RAM / 512 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage None
External Storage Options
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption 8.6 W (With Heater)
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Startup Temperature
Storage Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 0 to 95%
IP Rating IP67
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination IR LEDs up to 98.4' / 30 m
Video Management Software DSS Express S, DMSS
Supported Languages
Certifications
Material of Construction Metal (Unspecified Type), Plastic
Dimensions �: 5.0 x H: 4.1" / �: 126.0 x H: 105.0 mm
Weight 1.56 lb / 0.71 kg
