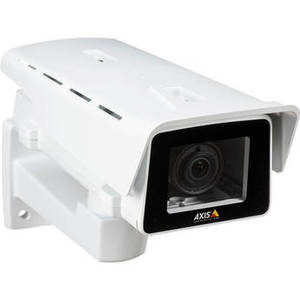

M1137-E 5MP Outdoor Network Box Camera with 2.8-13mm Lens

Product Description
Monitor an outdoor area with the white M1137-E 5MP Outdoor Network Box Camera from Axis Communications. This camera uses a 1/3" progressive scan RGB CMOS sensor to capture 2592 x 1944 resolution video at 30 fps. Forensic WDR and Lightfinder technology help the camera produce clear images in challenging and low-light conditions. A CS mount allows you to choose from interchangeable lenses to best suit your surveillance application. An included 2.8-13mm varifocal lens delivers a 112 to 24° horizontal field of view. You'll be able to record video with sound thanks to an audio input. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot accepts microSD/SDHC/SDXC cards (available separately).
This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
This box camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 5 MP 1/3" CMOS |
| Lens Mount | CS |
| Focal Length | 2.8 to 13mm |
| Maximum Aperture | f/1.4 |
| Zoom | Optical: 4.6x |
| Lens Field of View | Horizontal: 112 to 24° Vertical: 82 to 19° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.17 Lux B&W: 0.03 Lux |
| Shutter Speed | 1/33,500 to 1/5 Seconds |
| Camera Angle Adjustment | |
| Video | |
| Streaming Resolution | 2592 x 1944 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | Yes |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC-LC, G.711, G.726, LPCM, Opus |
| Built-In Mic | No |
| Pan/Tilt | None |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Guardian with One-Click Connection ONVIF Profiles G, S, and T |
| Analytics | Included AXIS Live Privacy Shield, AXIS Video Motion Detection, Active Tampering Alarm Supported AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Built-In Installation Aids | Pixel Counter |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Memory | 1024 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | PoE: 4.5 W DC: 4.4 W |
| Environmental | |
| Operating Temperature | -13 to 122°F / -25 to 50°C |
| Startup Temperature | -4°F / -20°C |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 100% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Block 4-Pin 1 x Block 2-Pin |
| Video Management Software | AXIS Companion AXIS Camera Station Video Management Software from Axis Application Development Partners |
| Supported Languages | English French German Italian Japanese Korean Polish Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | Polymer |
| Dimensions | H: 5.6 x W: 9.4 x L: 14.6" / H: 143.0 x W: 240.0 x L: 372.0 mm |
| Weight | 3.97 lb / 1.8 kg |
