O4B7M 4MP Outdoor Network Bullet Camera with Night Vision
Product Description

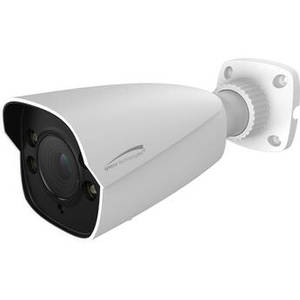

Monitor an outdoor area with the white O4B7M 4MP Network Bullet Camera from Speco Technologies. This unit uses a 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. IR LEDs provide up to 230' of night vision. The camera's 2.8-12mm motorized varifocal lens delivers a 94.2 to 29.8° horizontal field of view. Two-way audio is possible thanks to an audio input and output. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in card slot supports microSD cards up to 128GB (available separately).
This bullet camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera's enclosure is IP67 rated for outdoor use.
This bullet camera complies with ONVIF profile T, making it compatible with a wide range of surveillance devices. A junction box is included for cable management. The camera's enclosure is IP67 rated for outdoor use.
| Camera | |
| Sensor | 4 MP 1/3" CMOS |
| Lens Mount | |
| Focal Length | 2.8 to 12mm |
| Maximum Aperture | |
| Zoom | Optical: 4.3x |
| Lens Field of View | Horizontal: 94.2 to 29.8° |
| IR Cut Filter | Mechanical |
| Day/Night | True |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100000 to 1/30 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2592 x 1520 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711 |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark |
| Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, NTP, PPPoE, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profile T |
| Analytics | Motion, Missing Object, Abandoned Object, Intrusion, Vehicle, Human, Tampering, Scene Change & Face Detection |
| Built-In Installation Aids | |
| OS Compatibility | Android iOS *As of August, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 1 / 1 |
| Hardware | |
| Memory | |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
| Internal Storage | None |
| External Storage Options | |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 9.5 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | |
| Operating Humidity | 0 to 95% |
| IP Rating | IP67 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x BNC |
| Illumination | IR LEDs up to 230' / 70.1 m |
| Video Management Software | SecureGuard VMS & CMS for PC Applications SecureGuard Client & Speco Blue for iOS & Android |
| Supported Languages | |
| Certifications | |
| Material of Construction | |
| Dimensions | H: 3.5 x W: 4.0 x L: 11.0" / H: 88.9 x W: 101.6 x L: 279.4 mm |
| Weight | 1.52 lb / 689 g |
