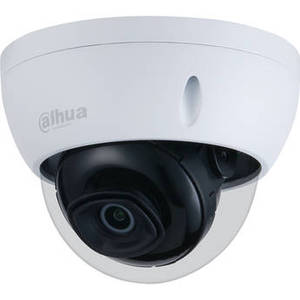

Lite Series N53AL52 5MP Outdoor Network Dome Camera with Night Vision


From Dahua Technology | Model #: DA5SDS28



See more in Cameras


Lite Series N53AL52 5MP Outdoor Network Dome Camera with Night Vision

Product Description

Capture 5MP security video with the Lite Series N53AL52 5MP Outdoor Network Dome Camera with Night Vision from Dahua Technology. Featuring a 1/2.7" CMOS sensor and a 2.8mm fixed lens, this camera can record video at resolutions up to 2592 x 1944 at 20 fps in a 98 x 72° field of view. The camera has an IR cut filter and IR LEDs for night vision to a maximum effective range of 164'.

Designed for easy setup, this camera incorporates PoE technology so you can run just one cable for both data and power. The camera is housed in an IP67- and IK10-rated enclosure that makes it suitable for use in vandal-prone outdoor locations. A built-in microSD slot allows for onboard storage of footage while built-in audio in/out ports enable two-way talk. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Camera
Sensor 5 MP 1/2.7" CMOS
Lens Mount M12
Focal Length 2.8mm
Maximum Aperture
Zoom
Lens Field of View Horizontal: 98°
Vertical: 72°
Diagonal: 130°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.005 Lux
B&W: 0 Lux
Shutter Speed 1/100000 to 1/3 Seconds
Camera Angle Adjustment Horizontal: 0 to 355°
Vertical: 0 to 65°
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2592 x 1944 at 20 fps (8.2 Mb/s )
2688 x 1520 at 30 fps (8.2 Mb/s )
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, G.726
Built-In Mic No
Built-In Speaker No
Audio I/O Input:
RCA
Output:
RCA
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security HTTPS, IEEE 802.1X
Supported Protocols ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API)
Analytics Motion Detection, Tripwire Violation Detection, Intrusion Detection, Tamper Detection, Sudden Scene Change Detection
Built-In Installation Aids
OS Compatibility Android
iOS
*As of March, 2020: Check with manufacturer for the most up-to-date compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Alarm
Data Streaming
Alarm I/O 1 / 1
Hardware
Memory 512 MB RAM / 128 MB Flash
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source DC, PoE 802.3af (15 W)
Power Consumption 7.3 W
Environmental
Operating Temperature -40 to 140°F / -40 to 60°C
Startup Temperature
Storage Temperature -40 to 140°F / -40 to 60°C
Operating Humidity 95%
IP Rating IP67
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
1 x Power
Illumination IR LEDs up to 164' / 49.99 m
Video Management Software IVS, DSS, DMSS
Supported Languages
Certifications CSA, EN 50130-4, EN 55024, UL, as per Manufacturer
Material of Construction Metal (Unspecified Type)
Dimensions �: 4.3 x H: 3.2" / �: 109.9 x H: 81.0 mm
Weight 0.83 lb / 378 g
