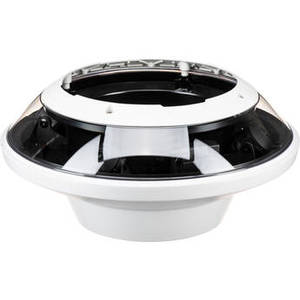

Q6010-E 20MP Outdoor 4-Sensor 360° Network Dome Camera (60 Hz)


From Axis Communications | Model #: AX01981001



See more in Cameras


Q6010-E 20MP Outdoor 4-Sensor 360° Network Dome Camera (60 Hz)

Product Description

The Q6010-E 20MP Outdoor 4-Sensor 360° Network Dome Camera (60 Hz) from Axis Communications is a multi-sensor camera that is designed to be used with a Q60-E series PTZ camera (available separately). The Q6010-E uses four 1/2.5" progressive scan RGB CMOS sensors to capture 2592 x 1944 resolution video per sensor at 20 fps, for a total resolution of 20MP. The camera is equipped with four 2.8mm fixed lenses, enabling a 360° overview. When used in conjunction with the required Q60-E PTZ camera, the unit features one-click PTZ control and autopilot for automatic PTZ tracking within the viewing areas. An onboard slot accepts SD/SDHC/SDXC cards up to 2TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.

This multi-sensor camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism.
Camera
Sensor 4 x 5 MP 1/2.5" CMOS
Lens Mount
Focal Length 2.8mm
Maximum Aperture f/2
Zoom
Lens Field of View Horizontal: 360°
Vertical: 84°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.4 Lux
B&W: 0.03 Lux
Shutter Speed 1/32500 to 1/20 Seconds
Camera Angle Adjustment
Smart Specs
Smart Home Ecosystems
App Compatible
Cloud Platform
Desktop Software
Video
Multi-View Streaming
Video Modes
Streaming Resolution 2592 x 1944 at 20 fps
Supported Video Compression H.264, H.265
Multi-View Streaming Yes
Automatic Gain Control
Video Output Connectors
Output Formats
Audio
1- or 2-Way Audio
Built-In Mic No
Built-In Speaker
Audio I/O
Pan & Tilt
Up-the-Coax Communication
Presets
Supported Control Protocols
Pan/Tilt None
Move Speed
Movement Range
Networking
Security Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log
Supported Protocols ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTCIP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6, syslog
Wireless
Frequency Range
Wi-Fi Bands
Wi-Fi Standards
CDMA 3G
GSM 3G/3.5G
4G LTE
5G NR
Bluetooth
Wireless Range
Encryption
System Integration
Application Programming Interface (API) Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles G, S & T
Analytics Included: Autopilot, AXIS Video Motion Detection, AXIS Guard Suite Including AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, Active Tampering Alarm, Edge Storage Events Support for AXIS Camera Application Platform Enabling Installation of Third-Party Applications
Built-In Installation Aids Installation Focus, Lens Selection, Positioning Calibration, PTZ Remote Connection
OS Compatibility
Sensors & Alarms
Sensors
Sensor Range
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O
Hardware
Memory 2048 MB RAM / 512 MB Flash
Media/Memory Card Slot Single Slot: SD/SDHC/SDXC [2 TB Maximum]
Internal Storage None
External Storage Options NAS
Power
Power
Built-In Battery
Battery Type
Power Source PoE 802.3at (30 W)
Power Consumption 9 W
Environmental
Operating Temperature -40 to 122°F / -40 to 50°C
Startup Temperature -40°F / -40°C
Storage Temperature -40 to 149°F / -40 to 65°C
Operating Humidity 10 to 100%
IP Rating IP66
IK Rating IK10
General
Inputs/Outputs 1 x RJ45
Illumination
Video Management Software AXIS Companion, AXIS Camera Station, Video Management Software from Axis Application Development Partners
Supported Languages English
French
German
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Traditional Chinese
Certifications
Material of Construction Aluminum, Polymer
Dimensions �: 15.6 x H: 7.9" / �: 395.0 x H: 201.0 mm
Weight 9.9 lb / 4.5 kg
