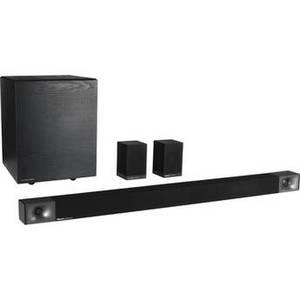

Cinema 800 860W 5.1-Channel Soundbar System

Product Description
Enhance the audio of your display with the Klipsch Cinema 800 860W 5.1-Channel Soundbar System. It features three 1" tweeters mated to Tractrix horns and four 3" composite fiber oval woofers, wireless surround speakers with 3" full-range drivers, and a 10" wireless subwoofer for augmented bass response. The soundbar has optical and two HDMI inputs for direct connection to your source devices, an eARC-compatible HDMI output to connect to your display, Bluetooth connectivity for wireless streaming from your compatible device, and a 1/8" analog input for devices without Bluetooth. The HDMI ports support HDR and 8K UHD pass-through for integration with high-resolution A/V systems.
A subwoofer output on the soundbar lets you use a second subwoofer, or replace the included subwoofer with one of your own. At just 2.9" tall, you can place the Cinema 800 under your display on a table top, or mount it to the wall with the included hardware. An HDMI cable is also included for instant connectivity.
A subwoofer output on the soundbar lets you use a second subwoofer, or replace the included subwoofer with one of your own. At just 2.9" tall, you can place the Cinema 800 under your display on a table top, or mount it to the wall with the included hardware. An HDMI cable is also included for instant connectivity.
| Soundbar | |
| Channel Configuration | 5.1-Channel |
| Enclosure Type | |
| Passive Radiators | |
| Low-Frequency Drivers | 4 x 3" / 76.2 mm Composite Cone |
| Midrange Drivers | |
| High-Frequency Drivers | 3 x 1" / 25.4 mm Tweeter |
| Full-Range Drivers | |
| Amplification | |
| Amplifier Output | 860 W |
| Crossover | |
| Frequency Response | 28 Hz to 20 kHz (System) |
| Impedance | |
| Maximum SPL | 111 dB |
| SNR (Signal-to-Noise Ratio) | |
| Total Harmonic Distortion (THD) | |
| Sensitivity | |
| Satellite Speakers | |
| Speaker Positioning | Rear, Side |
| Speaker Configuration | Full-Range |
| Full-Range Drivers | 1 x 3" / 76.2 mm Cone per Speaker |
| Power Rating | 30 W per Speaker |
| Satellite Connectivity | Wireless |
| Placement & Mounting Options | Tabletop/Bookshelf |
| Subwoofer | |
| Enclosure Type | Bass-Reflex |
| Drivers | 1 x 10" / 25.4 cm |
| Passive Radiators | |
| Amplifier Output | |
| Amplifier Class | |
| Frequency Response | |
| Impedance | |
| Maximum SPL | |
| Total Harmonic Distortion (THD) | |
| Subwoofer Connectivity | Wireless |
| Connectivity | |
| Inputs | 2 x HDMI - Audio/Video 1 x Optical TOSLINK - Audio 1 x 1/8" / 3.5 mm - Audio |
| Outputs | 1 x HDMI - eARC/Video 1 x RCA - Subwoofer |
| USB Ports | None |
| Ethernet | LAN |
| Control | |
| Wireless Audio Protocols | Bluetooth |
| Bluetooth | 5.0 |
| NFC | No |
| Bluetooth Profiles | |
| Bluetooth Codec Support | |
| Bluetooth Frequency Response | |
| Bluetooth Range | |
| Wi-Fi | Yes |
| Compatibility | |
| Audio Decoding | Dolby Atmos, Dolby Digital, Dolby Digital Plus |
| Sampling Frequencies | |
| HDMI Compliance | ARC, eARC |
| HDR Compatibility | HDR10 |
| HDCP Compliance | HDCP 2.3 |
| Supported File Formats | |
| Supported File Systems | |
| Supported Languages | |
| Power | |
| Power Consumption | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Physical | |
| IP Rating | |
| Material of Construction | Wood |
| Wall Mountable | Yes |
| Soundbase Load Capacity | |
| Recommended Screen Size | |
| Dimensions | 48 x 2.9 x 3.4" / 121.9 x 7.3 x 8.6 cm (Soundbar) 4.3 x 6.5 x 4.3" / 108 x 165.1 x 108 mm (Satellites) 14.3 x 18.5 x 14.5" / 36.3 x 47 x 36.8 cm (Subwoofer) |
| Weight | 22 lb / 10 kg |
