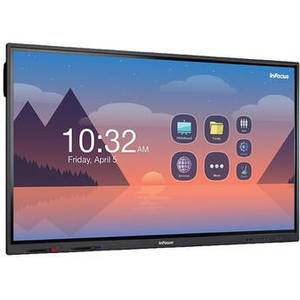

JTouch INF8640e 86" Class 4K UHD Commercial Touchscreen LED Display
Product Description
Conduct interactive meetings and classes with the InFocus JTouch INF8640e 86" Class 4K UHD Commercial Touchscreen LED Display. It outputs up to 450 cd/m² of brightness with a 4000:1 dynamic contrast ratio to help enhance visibility in bright environments. The embedded Android 8 operating system lets you intuitively download and use apps, and an optional computer module can be installed to provide more advanced computing.
The JTouch supports up to 20 touch points for versatile interactivity and includes two interactive pens. It has a VGA and three HDMI inputs for audio/video connectivity, and USB ports that allow for the playback of compatible file formats.
The JTouch supports up to 20 touch points for versatile interactivity and includes two interactive pens. It has a VGA and three HDMI inputs for audio/video connectivity, and USB ports that allow for the playback of compatible file formats.
| Display | |
| Screen Size (Diagonal) | 86" |
| Resolution | 3840 x 2160 |
| Supported Display Resolutions | |
| Panel Type | LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 450 cd/m� |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Dynamic Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Direct LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI – Audio, Video (Side) 1 x VGA 15-Pin – Video (Bottom) 1 x TOSLINK Optical – Audio (Bottom) 1 x 1/8" / 3.5 mm – Audio (Bottom) |
| Output Ports | 1 x HDMI – Audio, Video (Side) 1 x 1/8" / 3.5 mm – Audio (Bottom) |
| USB Ports | 3 x USB 3.0 / 3.1/3.2 Gen 1, USB-A - Audio/Photo/Video (Side) 2 x Unspecified USB, USB-B - Touchscreen Control (Side) 1 x USB 2.0, USB-A - Audio/Photo/Video (Bottom) |
| Ethernet Ports | Bottom: 1 |
| Control | RS-232C via DE-9/DB-9 |
| Wi-Fi | With Included Hardware |
| Number of OPS/Expansion Slots | 1 |
| General | |
| TV Tuner | No |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | 30000 Hours |
| Surface | |
| Touchscreen Technology | Infrared (IR) |
| Multi-Touch Points | 20 |
| Surface Treatment | Anti-Glare |
| Hardness Rating | 7 Mohs |
| Audio | |
| Built-In Speakers | Yes, 2 x 12 W |
| Speaker Configuration | 2-Channel |
| Processing | |
| Hardware | |
| Operating System | Android 8 |
| CPU | Cortex A73 Dual-Core Cortex A53 Dual-Core |
| GPU | ARM Mali G51 |
| Storage | 16 GB |
| RAM | 3 GB |
| OS Compatibility | Android Linux Windows macOS *As of June, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensor | |
| Aperture | |
| Field of View | |
| Convenience | |
| Built-In Mic | |
| Microphone Features | |
| NFC | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Multi-Input Support (PIP/PBP) | |
| Supported Languages | English French German Italian Simplified Chinese Spanish |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 400.0 W Standby: < 0.5 W |
| AC Input Power | |
| DC Input Power | |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | 16,404' / 5000 m |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Physical | |
| Wall Mounting | 600 x 400 mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | 0.16" / 4 mm |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 74.6 x 42.0 x 3.5" / 1895.0 x 1066.0 x 88.0 mm |
| Stand Dimensions | |
| Weight | 146.2 lb / 66.31 kg |
