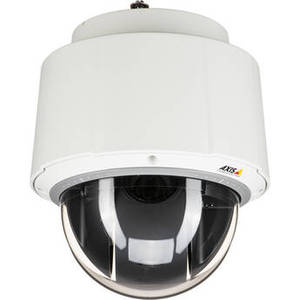

Q6075 1080p PTZ Network Dome Camera (60 Hz)
Product Description
The Q6075 1080p PTZ Network Dome Camera (60 Hz) from Axis Communications uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. Axis Lightfinder 2.0 technology provides low-light images with more saturated colors and sharper images of moving objects. A 4.25-170mm varifocal lens delivers a 65.1 to 2° horizontal field of view. This camera features endless panning, a 180° tilt range, and 40x optical zoom. A built-in memory slot accepts SD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This PTZ camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
This PTZ camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 4.2 to 170mm |
| Maximum Aperture | f/1.6 to 4.95 |
| Zoom | Optical: 40x Digital: 12x |
| Lens Field of View | Horizontal: 65.1 to 2° Vertical: 39.1 to 1.18° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0.002 Lux |
| Shutter Speed | 1/11000 to 1/3 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | Programmed Pan: 360° at 450°/s Programmed Tilt: 180° at 450°/s |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTCIP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Guardian with One-Click Connection ONVIF Profiles G, S & T |
| Analytics | Included AXIS Video Motion Detection, AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard, Autotracking 2, Active Gatekeeper, Audio Detection, Basic Analytics (Object Removed, Enter/Exit Detector, Object Counter) Support for AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Built-In Installation Aids | Pixel Counter, Leveling Guide |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 1 GB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3at (30 W) |
| Power Consumption | PoE: 11 W |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Startup Temperature | |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 85% |
| IP Rating | IP52 |
| IK Rating | |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | |
| Video Management Software | AXIS Companion AXIS Camera Station Video Management Software from Axis' Application Development Partners |
| Supported Languages | English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | Aluminum, Polymer |
| Dimensions | �: 7.8 x H: 9.4" / �: 198.0 x H: 240.0 mm |
| Weight | 6.28 lb / 2.85 kg |
