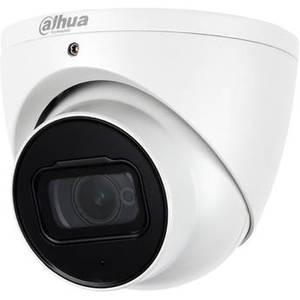

N45DJ62 4MP Outdoor ePoE Network Turret Camera with Night Vision

Product Description
Monitor an outdoor area with the N45DJ62 4MP Outdoor ePoE Network Turret Camera from Dahua Technology. This unit uses a 1/1.8" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. Two IR LEDs provide up to 164' of night vision. The camera's 2.8mm fixed lens delivers a 113° horizontal field of view. A built-in microphone enables audio pickup. An onboard memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. Additionally, ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables.
This turret camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
This turret camera complies with ONVIF profiles S & G, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated metal enclosure that is suitable for outdoor use.
Camera | |
Sensor | 4 MP 1/1.8" CMOS |
Lens Mount | |
Focal Length | |
Maximum Aperture | |
Zoom | |
Lens Field of View | Horizontal: 113° Vertical: 60° |
IR Cut Filter | Mechanical |
Day/Night | True |
Minimum Illumination | Color: 0.002 Lux B&W: 0 Lux |
Shutter Speed | 1/100000 to 1/3 Seconds |
Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 78° |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 2688 x 1520 at 30 fps (8.192 Mb/s ) 1920 x 1080 at 60 fps |
Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
Multi-View Streaming | Yes, 3 Streams |
Automatic Gain Control | Yes |
Video Output Connectors | |
Output Formats | |
Audio | |
1- or 2-Way Audio | One-Way |
Audio Formats | AAC, G.711, G.723, G.726 |
Built-In Mic | Yes |
Built-In Speaker | |
Audio I/O | |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | |
Pan/Tilt | None |
Move Speed | |
Movement Range | |
Networking | |
Security | HTTPS, IEEE 802.1X |
Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, TCP, UDP, UPnP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ONVIF Profiles S and G, CGI, Milestone, Genetec, P2P |
Analytics | Tampering Memory Card Error Network Error Unauthorized Access IP Address Conflict Motion Scene Change Abandoned/Missing Object Perimeter Protection (Tripwire, Intrusion, Fast Moving, Parking Detection, Crowd Gathering, Loitering Detection) People Counting (Line Crossing & Region) Face Detection |
Built-In Installation Aids | |
OS Compatibility | Android iOS *As of May, 2020: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | Yes |
Alarm I/O | |
Hardware | |
Memory | 512 MB RAM / 128 MB Flash |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
Internal Storage | None |
External Storage Options | NAS |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | DC, PoE 802.3af (15 W) |
Power Consumption | DC: 6.2 W PoE: 7.2 W |
Environmental | |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Startup Temperature | |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Operating Humidity | 0 to 95% |
IP Rating | IP67 |
IK Rating | |
General | |
Inputs/Outputs | 1 x RJ45 1 x Power |
Illumination | IR LEDs up to 164' / 50 m |
Video Management Software | SmartPSS, DSS, DMSS |
Supported Languages | |
Certifications | |
Material of Construction | Metal (Unspecified Type) |
Dimensions | �: 4.2 x H: 3.9" / �: 106.0 x H: 99.2 mm |
Weight | 1.21 lb / 0.55 kg |
