M3064-V 720p Network Mini Dome Camera
Product Description

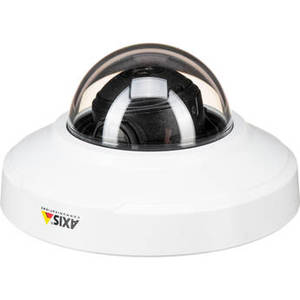

Monitor your space with the white M3064-V 720p Network Mini Dome Camera from Axis Communications. This device uses a 1/2.9" progressive scan RGB CMOS sensor to capture 1280 x 720 resolution video at up to 30 fps. The camera's 3.1mm fixed lens delivers an 83° horizontal field of view. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately).
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IK08-rated enclosure for protection from vandalism.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IK08-rated enclosure for protection from vandalism.
| Camera | |
| Sensor | 1.3 MP 1/2.9" CMOS |
| Lens Mount | |
| Focal Length | 3.1mm |
| Maximum Aperture | f/2 |
| Lens Field of View | Horizontal: 83° Vertical: 45° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.2 Lux B&W: 0.04 Lux |
| Shutter Speed | 1/32,500 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: -175 to 175° Vertical: -80 to 80° |
| Video | |
| Streaming Resolution | 1280 x 720 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Audio | |
| Built-In Mic | No |
| Pan/Tilt | None |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, MQTT, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles G, S & T Support for Session Initiation Protocol (SIP) for Integration with VoIP Systems, P2P or Integrated with SIP/PBX |
| Analytics | Included: AXIS Video Motion Detection, Active Tampering Alarm Supported: Autotracking, AXIS Fence Guard, AXIS Motion Guard, AXIS Loitering Guard, AXIS People Counter, AXIS Queue Monitor, AXIS Occupancy Estimator, AXIS Direction Detector, AXIS Tailgating Detector, AXIS Random Selector, AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Built-In Installation Aids | Pixel Counter |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Memory | 512 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [2 TB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | 1.6 W |
| Environmental | |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Startup Temperature | |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 15 to 85% |
| IP Rating | IP42 |
| IK Rating | IK08 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Video Management Software | AXIS Companion, AXIS Camera Station, Video Management Software from Axis Application Development Partners |
| Supported Languages | English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | ABS, Polymer |
| Dimensions | �: 4.0 x H: 2.2" / �: 101.0 x H: 56.0 mm |
| Weight | 0.33 lb / 150 g |
