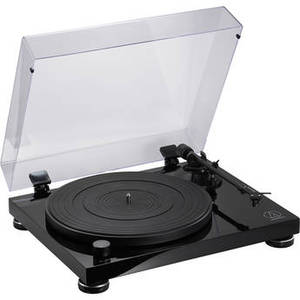

AT-LPW50PB Fully Manual Two-Speed Stereo Turntable
Product Description
Enjoy your favorite 33 1/3 and 45 rpm vinyl records with your stereo system and the Audio-Technica AT-LPW50PB Fully Manual Two-Speed Stereo Turntable. It has a built-in switchable preamplifier, allowing you to connect directly to your stereo system or speakers of choice via RCA cables. A removable dust cover, RCA cable, and 45 rpm adapter are included.
| Motor | DC Servo |
| Drive Method | Belt Drive |
| Speeds | 33 1/3, 45 rpm |
| Tonearm Type | Straight, Carbon Fiber, Static-Balanced |
| Effective Tonearm Length | 8.8" / 223.6 mm |
| Overhang | 0.73" / 18.6 mm |
| Tracking Error Angle | <2° |
| Cartridge Weight | Applicable: 12 to 17 g |
| Stylus Pressure Adjustment | 0 to 3 g |
| Replacement Stylus | AT-VMN95E BK |
| Cartridge Type | VM |
| Recommended Load Impedance | 47 Kilohms |
| Stylus | 0.3 x 0.7 mil Bonded Elliptical |
| Stylus Cantilever | Aluminum Pipe |
| Signal to Noise Ratio | >60 dB |
| Tracking Force | 1.8 to 2.2 g |
| Cartridge Weight | 0.22 oz / 6.1 g |
| Headshell | Model: AT-HS4 BK Weight: 8.5 g Excluding Lead Wires Mount: 1/2" |
| Overhang | Headshell Adjustment: ±5 mm |
| Wow and Flutter | 33 rpm: <0.15% WRMS @ 3 kHz |
| Connectors | 1 x Stereo RCA Pair with Ground Screw |
| Gain | Phono Preamp: 35 dB Nominal, RIAA Equalized |
| Output Level | Phono: 4 mV Nominal at 1 kHz, 5 cm/sec Line: 200 mV Nominal at 1 kHz, 5 cm/sec |
| Turntable Platter | Die-Cast Aluminum |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, 0.5 A Max |
| Power Consumption | Operational: ≤1.3 W @ 110 VAC, 60 Hz Motor Off: 1 W @ 110 VAC, 60 Hz Power Off: 0.1 W @ 110 VAC, 60 Hz |
| Dimensions | With Dustcover: 16.54 x 4.96 x 14.02" / 420 x 126 x 356 mm Without Dustcover: 16.54 x 4.49 x 14.02" / 420 x 114 x 356 mm |
| Weight | 12.26 lb / 5.56 kg without Dustcover |
