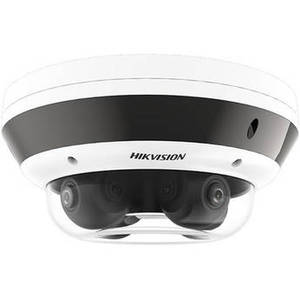

PanoVu DS-2CD6D54G1-IZS 20MP Outdoor Multisensor Network Dome Camera with Four 2.8-8mm Lenses & Night Vision

Product Description
Monitor your property with the PanoVu DS-2CD6D54G1-IZS 20MP Outdoor Multisensor Network Dome Camera from Hikvision. Featuring an omnidirectional array of four 5MP sensors and four 2.8-8mm motorized varifocal lenses, this camera captures four views, each with a field of view of 100 to 49° and a resolution of up to 2560 x 1920 at 24 fps. Each lens can be individually adjusted from -60 to 60° horizontally and from 10 to 90° to customize coverage. The camera is equipped with IR LEDs for up to 100' of night vision and uses a built-in IR cut filter to switch from color to B&W for day/night functionality.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP67- and IK10-rated enclosure. A built-in microSD card slot allows for onboard storage of footage, while audio in/out ports enable two-way talk. PoE technology simplifies installation by enabling you to run just one cable for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Suitable for use in vandal-prone outdoor locations, the camera is housed in an IP67- and IK10-rated enclosure. A built-in microSD card slot allows for onboard storage of footage, while audio in/out ports enable two-way talk. PoE technology simplifies installation by enabling you to run just one cable for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Camera | |
Sensor | 4 x 5 MP 1/2.7" CMOS |
Lens Mount | |
Focal Length | 2.8 to 8mm |
Maximum Aperture | f/1.9 |
Zoom | Optical: 2.9x |
Lens Field of View | Horizontal: 100 to 49° Vertical: 72 to 36.4° Diagonal: 134.4 to 61.4° |
IR Cut Filter | Mechanical |
Day/Night | Yes |
Minimum Illumination | Color: 0.0125 Lux B&W: 0 Lux |
Shutter Speed | 1/100000 to 1 Seconds |
Camera Angle Adjustment | Horizontal: -60 to 60° Vertical: 10 to 90° |
Smart Specs | |
Smart Home Ecosystems | |
App Compatible | |
Cloud Platform | |
Desktop Software | |
Video | |
Multi-View Streaming | |
Video Modes | |
Streaming Resolution | 2560 x 1920 at 24 fps (16 Mb/s ) |
Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
Multi-View Streaming | Yes, 3 Streams |
Automatic Gain Control | Yes |
Video Output Connectors | |
Output Formats | |
Audio | |
1- or 2-Way Audio | Two-Way |
Audio Formats | G.711, G.722.1, G.726, MP2L2, PCM |
Built-In Mic | No |
Built-In Speaker | No |
Audio I/O | Input: 1/8" / 3.5 mm Output: 1/8" / 3.5 mm |
Pan & Tilt | |
Up-the-Coax Communication | |
Presets | |
Supported Control Protocols | |
Pan/Tilt | None |
Move Speed | |
Movement Range | |
Networking | |
Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, Watermark |
Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP |
Wireless | |
Frequency Range | |
Wi-Fi Bands | |
Wi-Fi Standards | |
CDMA 3G | |
GSM 3G/3.5G | |
4G LTE | |
5G NR | |
Bluetooth | |
Wireless Range | |
Encryption | |
System Integration | |
Application Programming Interface (API) | ISAPI, SDK, Ehome |
Analytics | Line Crossing Detection (up to Four Configurable Lines), Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection (up to Four Configurable Regions), Scene Change Detection, Audio Exception Detection, Defocus Detection, Motion Detection, Tamper Detection, and Exception Detection |
Built-In Installation Aids | |
OS Compatibility | |
Sensors & Alarms | |
Sensors | |
Sensor Range | |
Event Trigger | Yes |
Event Action | Recording, Notification, Alarm |
Data Streaming | |
Alarm I/O | 2 / 2 |
Hardware | |
Memory | |
Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [128 GB Maximum] |
Internal Storage | None |
External Storage Options | Local PC, NAS |
Power | |
Power | |
Built-In Battery | |
Battery Type | |
Power Source | AC, DC, PoE 802.3at (30 W) |
Power Consumption | AC: 22 W DC: 22 W PoE: 19 W |
Environmental | |
Operating Temperature | -22 to 140°F / -30 to 60°C |
Startup Temperature | -22 to 140°F / -30 to 60°C |
Storage Temperature | -22 to 140°F / -30 to 60°C |
Operating Humidity | 95% |
IP Rating | IP67 |
IK Rating | IK10 |
General | |
Inputs/Outputs | 1 x RJ45 1 x Power |
Illumination | 850 nm IR LEDs up to 100' / 30.48 m |
Video Management Software | iVMS-4200, Hik-Connect, HikCentral |
Supported Languages | |
Certifications | UL, as per Manufacturer |
Material of Construction | Plastic, Metal (Unspecified Type) |
Dimensions | �: 9.8 x H: 4.4" / �: 24.9 x H: 11.2 cm |
Weight | 4.7 lb / 2.13 kg |
