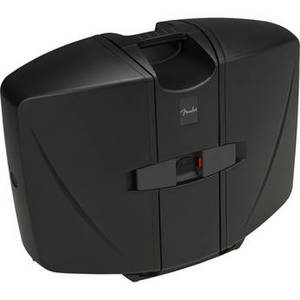

Passport Conference Series 2 Portable Powered PA System (175W)

Product Description
Designed for education, sporting events, houses of worship, meetings, seminars, musical performances, parties, small clubs, and coffeehouses, the Fender Passport Conference Series 2 is a self-contained portable audio system that provides everything needed to deliver amplification to a small- to medium-sized audience. Channels 1-3 feature combo XLR-1/4" mic/line inputs with a dedicated volume and tone control.
Channels 4/5 (L/Mono & R) offer two 1/4" inputs as well as a stereo 3.5mm connector, and a built-in Bluetooth receiver for streaming audio wirelessly from a phone or tablet. The unit's ease of operation is great for the layperson who needs quality with simple functionality. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for setup. Inside are two full-range speaker cabinets, a 175W powered mixer, and speaker cables.
Channels 4/5 (L/Mono & R) offer two 1/4" inputs as well as a stereo 3.5mm connector, and a built-in Bluetooth receiver for streaming audio wirelessly from a phone or tablet. The unit's ease of operation is great for the layperson who needs quality with simple functionality. The Passport can be transported like a suitcase and with a simple flip of the cabinet latches, the system is ready for setup. Inside are two full-range speaker cabinets, a 175W powered mixer, and speaker cables.
| Portable PA System | |
| Speaker Configuration | 2 x 2-Way Loudspeakers |
| Number of Input Channels | 5 (3 x Mono, 1 x Stereo) |
| Amplifier Power Rating | 175 W |
| Amplifier Class | Class-D |
| Impedance | |
| Speakers | |
| Enclosure Type | Speaker: Bass-Reflex |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 2 x 2.75" / 70 mm Tweeter (per Speaker) |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | 1 x 5.25" / 133 mm Woofer (per Speaker) |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | Yes |
| Semi-Parametric EQ | |
| Effects | |
| DSP | |
| Filters | |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Frequency Response | |
| Frequency Range | |
| Maximum SPL | |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | |
| SNR | |
| THD | |
| Dynamic Range | |
| Protections | |
| Connectivity | |
| Audio I/O | 3 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input 2 x 1/4" Female Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1 x 1/8" / 3.5 mm TRS Female Headphone Output 2 x 1/4" TS Female Speaker Output |
| Phantom Power | |
| USB | |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | Bluetooth |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | |
| Power | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | User Selectable: 100 to 240 VAC, 50 / 60 Hz (T 4 A H 250 V) |
| Power Adapter Output | |
| Current Consumption | |
| Power Consumption | 225 W (Max) |
| DC Input Power | |
| AC Power Connector | 1 x IEC Input |
| Physical | |
| Cable Length | |
| Transport Options | 1 x Handle (Top) |
| Mounting | |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | Plastic |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Dimensions | 25 x 19 x 10" / 63.5 x 48.26 x 25.4 cm |
| Weight | 31 lb / 14.06 kg |
