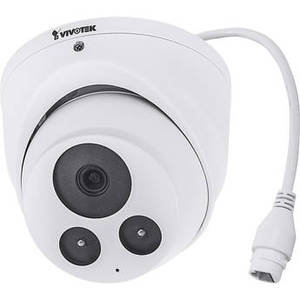

IT9380-H 5MP Outdoor Network Turret Camera with Night Vision & 3.6mm Lens
Product Description
Monitor an outdoor area with the IT9380-H 5MP Network Turret Camera from Vivotek.This unit uses a 1/2.7" progressive scan CMOS sensor to capture 2560 x 1920 resolution video at 20 fps. Two IR LEDs provide up to 98' of night vision. The camera features a 3.6mm fixed lens that delivers a 76° horizontal field of view, a built-in microphone, and a memory slot that accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This turret camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in a metal enclosure that is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
This turret camera complies with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in a metal enclosure that is IP67 and IK10 rated for outdoor use in areas at risk of vandalism.
| Camera | |
| Sensor | 5 MP 1/2.7" CMOS |
| Lens Mount | |
| Focal Length | 3.6mm |
| Maximum Aperture | f/2 |
| Zoom | Digital: 48x |
| Lens Field of View | Horizontal: 76° Vertical: 59° Diagonal: 100° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.03 Lux B&W: 0 Lux |
| Shutter Speed | 1/32000 to 1/5 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 360° Vertical: 0 to 70° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 2560 x 1920 at 20 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | G.711, G.726 |
| Built-In Mic | Yes |
| Built-In Speaker | |
| Audio I/O | |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | ONVIF Profiles S & G |
| Analytics | Five-Window Video Motion Detection |
| Built-In Installation Aids | |
| OS Compatibility | Windows 7 Windows 8 macOS 10.12 *As of June, 2020: Check with manufacturer for the most up-to-date compatibility |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 512 MB RAM / 128 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | PoE 802.3af (15 W) |
| Power Consumption | 6 W |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Startup Temperature | 14 to 140°F / -10 to 60°C |
| Storage Temperature | |
| Operating Humidity | 90% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 |
| Illumination | IR LEDs up to 98.4' / 30 m |
| Video Management Software | VAST, Shepherd |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | �: 4.1 x H: 3.2" / �: 105.0 x H: 82.5 mm |
| Weight | 1.05 lb / 475 g |
