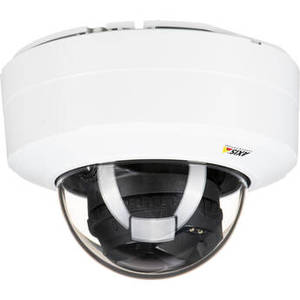

P3245-LV 1080p Network Dome Camera with Night Vision
Product Description
The white P3245-LV 1080p Network Dome Camera from Axis Communications uses a 1/2.8" progressive scan RGB CMOS sensor to capture 1920 x 1080 resolution video at up to 60 fps. IR LEDs provide up to 130' of night vision. The camera's 3.4-8.9mm varifocal lens delivers a 100 to 36° horizontal field of view. Two-way audio is possible via terminal connection. Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable. A memory card slot accepts microSD/SDHC/SDXC cards (available separately).
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IK10-rated enclosure for protection against vandalism.
This dome camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IK10-rated enclosure for protection against vandalism.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 3.4 to 8.9mm |
| Maximum Aperture | f/1.8 |
| Zoom | Optical: 2.6x |
| Lens Field of View | Horizontal: 100 to 36° Vertical: 53 to 20° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 Lux B&W: 0 Lux |
| Shutter Speed | 1/66500 to 2 Seconds |
| Camera Angle Adjustment | Horizontal: -180 to 180° Vertical: -75 to 75° |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
| Automatic Gain Control | Yes |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | AAC, G.711, G.726, LPCM, Opus |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: Terminal Block (Unspecified Pin Count) Output: Terminal Block (Unspecified Pin Count) |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SIP (SIPS), SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profiles G, S & T Support for SIP for Integration with VoIP Systems, P2P, or Integrated with SIP/PBX |
| Analytics | Included AXIS Video Motion Detection, Active Tampering Alarm, Audio Detection Supported AXIS Perimeter Defender, AXIS Guard Suite (AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard), AXIS Occupancy Estimator, AXIS Queue Monitor, AXIS People Counter, AXIS Tailgating Detector, AXIS Direction Detection, AXIS Random Selector, AXIS Camera Application Platform Enabling Installation of Third-Party Applications |
| Built-In Installation Aids | Pixel Counter, Remote Focus, Remote Zoom, OptimizedIR with Adjustable IR Illumination Intensity |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 1024 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | 6.4 W |
| Environmental | |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Startup Temperature | |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 85% |
| IP Rating | IP52 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power 1 x Block 4-Pin |
| Illumination | 850 nm IR LEDs up to 130' / 39.62 m |
| Video Management Software | AXIS Companion AXIS Camera Station Video Management Software from Axis' Application Development Partners |
| Supported Languages | English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Certifications | |
| Material of Construction | |
| Dimensions | �: 5.9 x H: 4.1" / �: 149.0 x H: 103.0 mm |
| Weight | 1.43 lb / 650 g |
