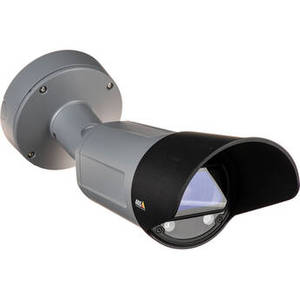

Q1700-LE 2MP Outdoor Network Bullet License Plate Camera with 18-37mm Lens & Night Vision
Product Description
Capture sharp license plate images of vehicles traveling at even high speeds with the Q1700-LE 2MP Outdoor Network Bullet License Plate Camera with Night Vision from Axis Communications. Equipped with a 2MP CMOS sensor and 18-37mm lens for 8x zoom, the camera captures video at resolutions up to 1920 x 1080 at 60 fps in a 16 to 2.3° field of view. The camera has IR LEDs for night vision to a range of up to 164' and uses an automatic IR cut filter to switch from color to B&W for day/night operation.
Housed in an IP66- and IK10-rated enclosure, the camera is suitable for use in vandal-prone outdoor locations. A built-in SD card slot allows for onboard storage of footage while an audio input makes audio capture possible. PoE technology simplifies installation, enabling you to run a single cable for power and data. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
Housed in an IP66- and IK10-rated enclosure, the camera is suitable for use in vandal-prone outdoor locations. A built-in SD card slot allows for onboard storage of footage while an audio input makes audio capture possible. PoE technology simplifies installation, enabling you to run a single cable for power and data. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.
| Camera | |
| Sensor | 2 MP 1/2.8" CMOS |
| Lens Mount | |
| Focal Length | 18 to 137mm |
| Maximum Aperture | f/2.9 to 4.1 |
| Zoom | Optical: 8x |
| Lens Field of View | Horizontal: 16 to 2.3° Vertical: 9.6 to 1.3° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.16 Lux B&W: 0 Lux |
| Shutter Speed | 1/66500 to 1 Seconds |
| Camera Angle Adjustment | |
| Smart Specs | |
| Smart Home Ecosystems | |
| App Compatible | |
| Cloud Platform | |
| Desktop Software | |
| Video | |
| Multi-View Streaming | |
| Video Modes | |
| Streaming Resolution | 1920 x 1080 at 60 fps |
| Supported Video Compression | H.264, MJPEG |
| Multi-View Streaming | Yes |
| Automatic Gain Control | |
| Video Output Connectors | |
| Output Formats | |
| Audio | |
| 1- or 2-Way Audio | One-Way |
| Audio Formats | AAC-LC, ADPCM, G.711, G.726, LPCM, Opus, PCM |
| Built-In Mic | No |
| Built-In Speaker | |
| Audio I/O | Input: 1/8" / 3.5 mm |
| Pan & Tilt | |
| Up-the-Coax Communication | |
| Presets | |
| Supported Control Protocols | |
| Pan/Tilt | None |
| Move Speed | |
| Movement Range | |
| Networking | |
| Security | Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DHCP, DNS, DiffServ, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, LLDP, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SOCKS, SRTP, SSH, SSL/TLS, TCP, UDP, UPnP, USGv6 |
| Wireless | |
| Frequency Range | |
| Wi-Fi Bands | |
| Wi-Fi Standards | |
| CDMA 3G | |
| GSM 3G/3.5G | |
| 4G LTE | |
| 5G NR | |
| Bluetooth | |
| Wireless Range | |
| Encryption | |
| System Integration | |
| Application Programming Interface (API) | Open API for Software Integration, Including VAPIX and Axis Camera Application Platform Axis Guardian One-Click Connection ONVIF Profiles G & S |
| Analytics | Axis Camera Application Platform Enables Installation of Third-Party Applications |
| Built-In Installation Aids | License Plate Capture Assistant, Remote Zoom, Pixel Counter, Leveling Assistant, Automatic Rotation |
| OS Compatibility | |
| Sensors & Alarms | |
| Sensors | |
| Sensor Range | |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | |
| Hardware | |
| Memory | 1024 MB RAM / 512 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC |
| Internal Storage | None |
| External Storage Options | NAS |
| Power | |
| Power | |
| Built-In Battery | |
| Battery Type | |
| Power Source | AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W) |
| Power Consumption | PoE: 12.95 W DC: 13.5 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Startup Temperature | |
| Storage Temperature | -40 to 149°F / -40 to 65°C |
| Operating Humidity | 10 to 100% |
| IP Rating | IP66 |
| IK Rating | IK10 |
| General | |
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Illumination | 850 nm IR LEDs up to 164' / 49.99 m |
| Video Management Software | Axis Companion Axis Camera Station Video Management Software from Axis' Application Development Partners |
| Supported Languages | English French German Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese |
| Certifications | EAC, EN 55024, FCC (Part 15 Class A), ICES-003 Class A, IEC60068-2-6, IEC60950-22, NEMA TS2, NEMA Type 4X, RCM, UL, as per Manufacturer |
| Material of Construction | Aluminum |
| Dimensions | �: 5.8 x L: 17.3" / �: 147.0 x L: 439.0 mm |
| Weight | 5.3 lb / 2.4 kg |
